51K405-500N5

Active

Rosenberger

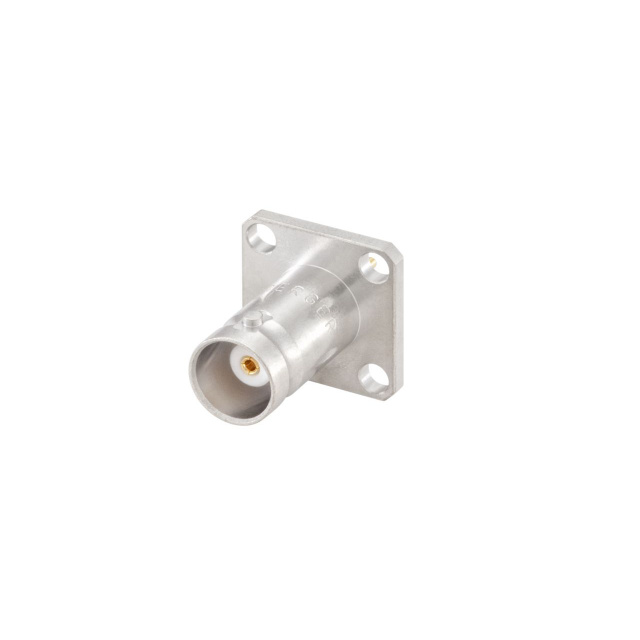

BNC PANEL JACK

Search across all available documentation for this part.

Active

Rosenberger

BNC PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	51K405-500N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	400 V

Part	Voltage Rating	Fastening Type	Mounting Feature	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Center Contact Plating	Connector Style	Impedance	Contact Termination	Mating Cycles	Housing Color	Dielectric Material	Shield Termination	Body Material	Number of Ports	Center Contact Material
Rosenberger 51K405-500N5	400 V	Bayonet Lock	Flange	10 GHz	Female Socket Jack	155 °C	-55 °C	White Bronze	Gold	BNC	50 Ohms	Solder Cup	500	Silver	Polytetrafluoroethylene (PTFE)	Solder	Brass	1	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 14.53

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
