396-022-521-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-022-521-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-022-521-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
396-022 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Material | Contact Finish | Number of Rows | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Mounting Type | Gender | Contact Type | Pitch [x] | Pitch [x] | Color | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Gold | 2 | Dual | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Wire Wrap | Through Hole Right Angle | Female | Cantilever | 0.125 in | 3.18 mm | Black | 11 | -40 °C | 105 ░C | 2 | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Copper Alloy | Gold | 1 | Single | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 22 | -40 °C | 105 ░C | 1 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Copper Alloy | Gold | 1 | Single | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 22 | -40 °C | 105 ░C | 1 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Gold | 2 | Dual | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 11 | -40 °C | 105 ░C | 2 | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Gold | 2 | Dual | Side Mount Opening Unthreaded | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Board Edge Straddle Mount | Female | Cantilever | 0.125 in | 3.18 mm | Black | 11 | -40 °C | 105 ░C | 2 | 3.25 mm | 0.128 in | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Copper Alloy | Gold | 1 | Single | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 22 | -40 °C | 105 ░C | 1 | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Gold | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 11 | -40 °C | 105 ░C | 2 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Copper Alloy | Gold | 1 | Single | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 22 | -40 °C | 105 ░C | 1 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Gold | 2 | Dual | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | Female | Cantilever | 0.125 in | 3.18 mm | Black | 11 | -40 °C | 105 ░C | 2 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Gold | 2 | Dual | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 22 positions | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Board Edge Straddle Mount | Female | Cantilever | 0.125 in | 3.18 mm | Black | 11 | -40 °C | 105 ░C | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.81 | |
Description
General part information
396-022 Series

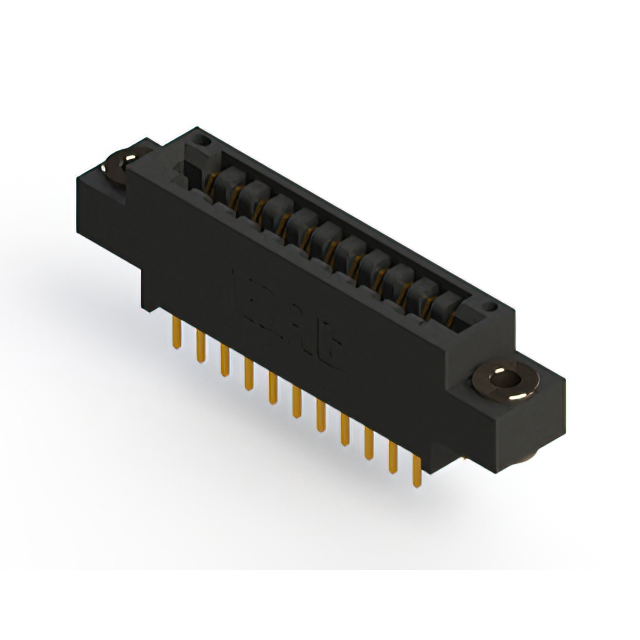

22 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
