D38999/26WJ35PN

Active

Corsair

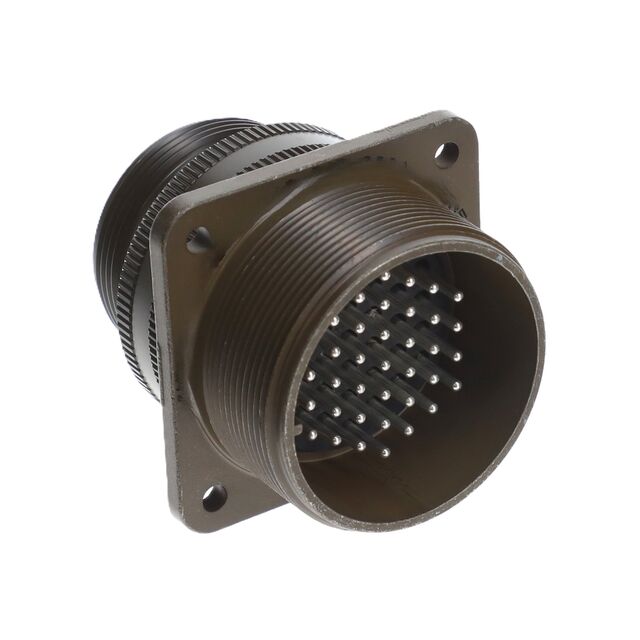

CONN PLUG MALE 128POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WJ35PN

Active

Corsair

CONN PLUG MALE 128POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.04
		10	$ 90.04
		25	$ 87.22
		50	$ 85.88
		100	$ 80.90
		250	$ 79.74
		500	$ 76.46
		1000	$ 74.43
	Bulk	1	$ 367.46
		10	$ 365.54

Description

General part information

D38999/26WJ Series

128 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D38999/26WJ35PN	D38999/26WJ Series

	-	-
Applications	Aerospace, Aviation, Military, Marine	Aviation, Marine, Military, Aerospace
Color	Olive Drab	Olive Drab
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 - 2.54 µm
Contact Finish Thickness - Mating	50 µin	50 - 100 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	8
Contact Size	-	16 - 20
Contact Type	-	Crimp
Current Rating (Amps)	5 A	5 - 45 A
Features	Coupling Nut	Coupling Nut
Grade	-	Military
Housing Color	-	Olive Drab
Ingress Protection	Environment Resistant, IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Resistant
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	128	19 - 128
Number of Positions	-	2
Number of Positions	-	46
Number of Positions	-	44
Number of Positions	-	2
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	A, N, C
Primary Material	Metal	Metal
Qualification	-	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium	Olive Drab Cadmium, Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	25
Shell Size - Insert	-	19 - 46
Shell Size, MIL	J	J
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Type	-	For Female Sockets
Voltage Rating	500 VAC	500 VAC

D38999/26WJ Series

D38999 SER III PLUG CONNECTOR

Part	Insert Material	Shell Finish	Contact Finish - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Shielding	Termination	Features	Primary Material	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Number of Positions	Current Rating (Amps)	Shell Material	Applications	Mounting Type	Ingress Protection	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Voltage Rating	Contact Shape	Qualification	Contact Size [custom]	Contact Size	Grade	Contact Type	Type	Number of Positions [custom]	Number of Positions [custom]	Note	Housing Color
Corsair D38999/26WJ19PA	Thermoplastic	Olive Drab Cadmium	Gold	25	19	A	Shielded	Crimp	Coupling Nut	Metal	Male Pins, Plug	Olive Drab	-65 ░C	347 °F	J	19	23 A	Aluminum	Aviation, Marine, Military	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Copper Alloy	1.27 µm	50 µin
Corsair D38999/26WJ90SCL
Corsair D38999/26WJ35PA	Thermoplastic	Olive Drab Cadmium	Gold			A	Shielded	Crimp	Coupling Nut	Metal	Male Pins, Plug	Olive Drab	-65 ░C	347 °F	J	128	5 A	Aluminum	Aviation, Marine, Military	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Copper Alloy	1.27 µm	50 µin
Corsair D38999/26WJ90SN	Thermoplastic	Olive Drab Cadmium	Gold			N	Shielded	Crimp	Coupling Nut	Metal	Female Sockets, Plug	Olive Drab	-65 ░C	347 °F	J		7.5 A, 13 A, 45 A	Aluminum	Aviation, Marine, Military	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Copper Alloy	1.27 µm	50 µin	2	46
Corsair D38999/26WJ35SN	Thermoplastic	Olive Drab Cadmium	Gold			N	Shielded	Crimp	Coupling Nut	Metal	Female Sockets, Plug	Olive Drab	-65 ░C	347 °F	J	128	5 A	Aluminum	Aviation, Marine, Military	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Copper Alloy	1.27 µm	50 µin
Corsair D38999/26WJ35JN	Thermoplastic	Olive Drab Cadmium	Gold			N	Shielded	Crimp	Coupling Nut	Metal	Female Sockets, Plug	Olive Drab	-65 ░C	347 °F	J	128	5 A	Aluminum	Aviation, Marine, Military	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Copper Alloy	2.54 çm	100 çin
Corsair D38999/26WJ35PN	Thermoplastic	Olive Drab Cadmium	Gold			N	Shielded	Crimp	Coupling Nut	Metal	Male Pins, Plug	Olive Drab	-65 ░C	347 °F	J	128	5 A	Aluminum	Aerospace, Aviation, Marine, Military	Free Hanging (In-Line)	Environment Resistant, IP67 - Dust Tight, Waterproof	Copper Alloy	1.27 µm	50 µin			UL94 V-0	500 VAC
Corsair D38999/26WJ46SCL	Thermoplastic	Cadmium		25	46	C	Shielded		Coupling Nut		Plug Housing		-65 ░C	347 °F	J			Aluminum		Free Hanging (In-Line)	Environment Resistant								Circular	MIL-DTL-38999 Series III	8	16, 20	Military	Crimp	For Female Sockets	44	2	Contacts Not Included	Olive Drab
