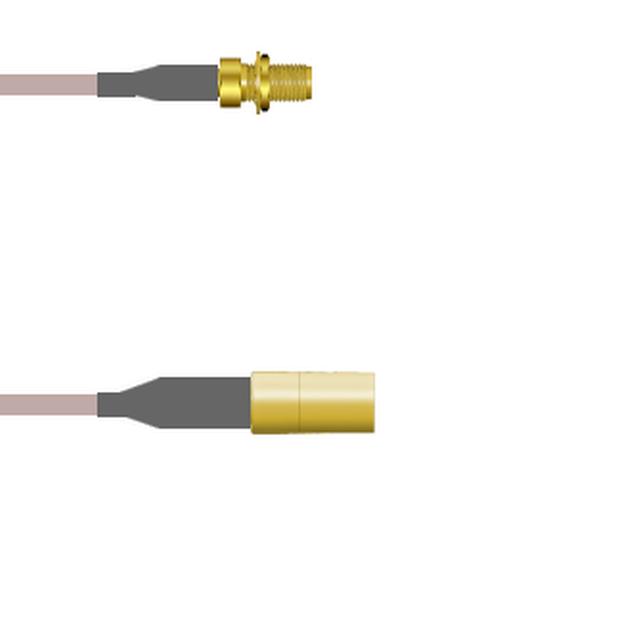

COAX CABLE SMA TO SMB 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO SMB 9"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2X03Z000R009I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	Length	Length	Cable Type	1st Connector Mounting Feature	Overall Impedance	2nd Contact Gender	2nd Connector	Features	Connector Impedance	Cable Impedance	Frequency - Max [Max]	Color	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	Style	1st Connector	Length
Amphenol Custom Cable Q-2X03Z000R012I	12 "	304.8 mm	RG-316 DS	Bulkhead - Front Side Nut	50 Ohms	Female	SMB Plug	Shielded	50 Ohms	50 Ohms	3 GHz	Copper	Panel Mount	Free Hanging (In-Line)	Female	SMA to SMB	SMA Jack
Amphenol Custom Cable Q-2X03Z000R084I	84 in	2.1 m	RG-316 DS	Bulkhead - Front Side Nut	50 Ohms	Female	SMB Plug	Shielded	50 Ohms	50 Ohms	3 GHz	Copper	Panel Mount	Free Hanging (In-Line)	Female	SMA to SMB	SMA Jack	7 ft
Amphenol Custom Cable Q-2X03Z000R009I	9 "	228.6 mm	RG-316 DS	Bulkhead - Front Side Nut	50 Ohms	Female	SMB Plug	Shielded	50 Ohms	50 Ohms	3 GHz	Copper	Panel Mount	Free Hanging (In-Line)	Female	SMA to SMB	SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-316 DS 9.000" (228.60mm)
