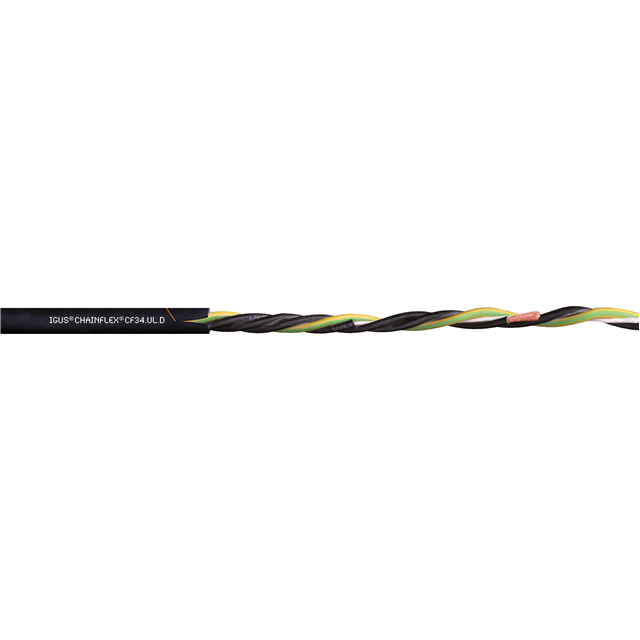

CF34-UL-100-04-O-PE-D

Active

Igus

CABLE 4COND 8AWG BLACK FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF34-UL-100-04-O-PE-D

Active

Igus

CABLE 4COND 8AWG BLACK FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.23
		100	$ 19.43
		500	$ 18.66
		1000	$ 16.29

Description

General part information

CF34 Series

4 Conductor Multi-Conductor Cable Black 8 AWG Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Specification	CF34-UL-100-04-O-PE-D	CF34 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated	Thermoplastic Elastomer (TPE), Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Bare	Copper, Bare
Features	Oil Resistant, UV Resistant, Flame Retardant	Oil Resistant, UV Resistant, Flame Retardant
Jacket (Insulation) Diameter	-	13.99 - 19.51 mm
Jacket (Insulation) Diameter [diameter]	16.51 mm	0.551 - 25 mm
Jacket (Insulation) Diameter [diameter]	0.65 in	0.335 - 0.984 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	4	4 - 5
Ratings	UL Style 21184	UL Style 21184
Voltage	1000 V	1000 V
Wire Gauge	8 AWG	4 - 16 AWG

Part	Voltage	Number of Conductors	Jacket Color	Conductor Insulation	Cable Type	Jacket (Insulation) Material	Features	Length	Wire Gauge	Ratings	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Igus CF34-UL-40-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	12 AWG	UL Style 21184	Copper, Bare	0.472 in	11.99 mm
Igus CF34-UL-25-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	13.5 AWG	UL Style 21184	Copper, Bare	0.413 in	10.49 mm
Igus CF34-UL-15-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	16 AWG	UL Style 21184	Copper, Bare	0.335 "	8.51 mm
Igus CF34-UL-100-05-D	1000 V	5	Black	Polyethylene (XLPE), Irradiated	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	8 AWG	UL Style 21184	Copper, Bare		0.768 in	19.51 mm
Igus CF34-UL-60-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	10 AWG	UL Style 21184	Copper, Bare		0.551 "	13.99 mm
Igus CF34-UL-250-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	4 AWG	UL Style 21184	Copper, Bare	0.984 in	25 mm
Igus CF34-UL-100-04-O-PE-D	1000 V	4	Black	Polyethylene (XLPE), Irradiated	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	8 AWG	UL Style 21184	Copper, Bare	0.65 in	16.51 mm
Igus CF34-UL-160-05-D	1000 V	5	Black	Polyethylene (XLPE), Irradiated	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	6 AWG	UL Style 21184	Copper, Bare	0.886 in	22.5 mm
Igus CF34-UL-100-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	8 AWG	UL Style 21184	Copper, Bare	0.669 "	16.99 mm
Igus CF34-UL-160-04-D	1000 V	4	Black	Thermoplastic Elastomer (TPE)	Multi-Conductor	Thermoplastic Elastomer (TPE)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	6 AWG	UL Style 21184	Copper, Bare

Part

Voltage

Number of Conductors

Jacket Color

Conductor Insulation

Cable Type

Jacket (Insulation) Material

Features

Length

Wire Gauge

Ratings

Conductor Material

Jacket (Insulation) Diameter [diameter]

Igus

CF34-UL-40-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

12 AWG

UL Style 21184

Copper, Bare

0.472 in

11.99 mm

Igus

CF34-UL-25-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

13.5 AWG

UL Style 21184

Copper, Bare

0.413 in

10.49 mm

Igus

CF34-UL-15-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

16 AWG

UL Style 21184

Copper, Bare

0.335 "

8.51 mm

Igus

CF34-UL-100-05-D

1000 V

Black

Polyethylene (XLPE), Irradiated

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

8 AWG

UL Style 21184

Copper, Bare

0.768 in

19.51 mm

Igus

CF34-UL-60-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

10 AWG

UL Style 21184

Copper, Bare

0.551 "

13.99 mm

Igus

CF34-UL-250-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

4 AWG

UL Style 21184

Copper, Bare

0.984 in

25 mm

Igus

CF34-UL-100-04-O-PE-D

1000 V

Black

Polyethylene (XLPE), Irradiated

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

8 AWG

UL Style 21184

Copper, Bare

0.65 in

16.51 mm

Igus

CF34-UL-160-05-D

1000 V

Black

Polyethylene (XLPE), Irradiated

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

6 AWG

UL Style 21184

Copper, Bare

0.886 in

22.5 mm

Igus

CF34-UL-100-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

8 AWG

UL Style 21184

Copper, Bare

0.669 "

16.99 mm

Igus

CF34-UL-160-04-D

1000 V

Black

Thermoplastic Elastomer (TPE)

Multi-Conductor

Thermoplastic Elastomer (TPE)

Flame Retardant, Oil Resistant, UV Resistant

Enter Number of Feet in Order Quantity

6 AWG

UL Style 21184

Copper, Bare
