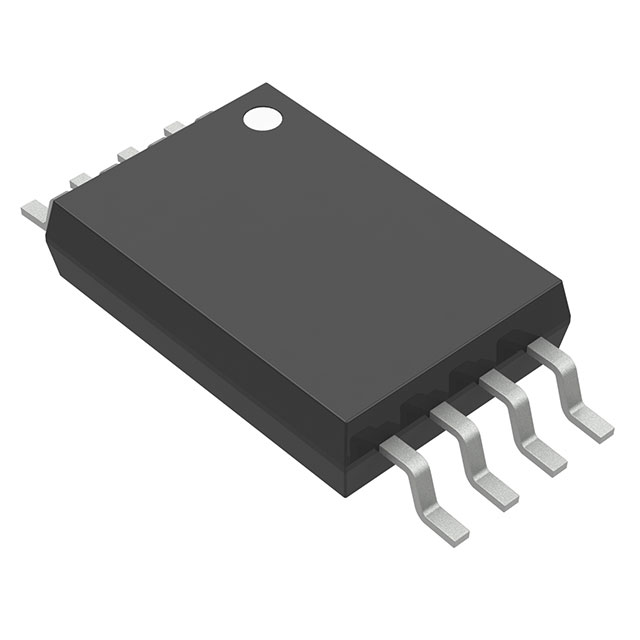

A1363LLUTR-1-T

Active

Allegro MicroSystems

SENSOR HALL ANALOG 8TSSOP

Search across all available documentation for this part.

Active

Allegro MicroSystems

SENSOR HALL ANALOG 8TSSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.80
	Digi-Reel®	1	$ 3.80
	Tape & Reel (TR)	12000	$ 1.79

General part information

Hall Effect Sensor Single Axis 8-TSSOP

Technical documentation and resources

Specification	A1363LLUTR-1-T	A1363 Series

Axis	Single	Single
Bandwidth	120 kHz	120 kHz
Current - Output (Max) [Max]	10 mA	10 mA
Current - Supply (Max) [Max]	15 mA	15 mA
Features	Temperature Compensated, Programmable	Temperature Compensated, Programmable
Mounting Type	Surface Mount	Through Hole, Surface Mount
Output Type	Analog Voltage	Analog Voltage
Package / Case	8-TSSOP	4-SIP Module, 8-TSSOP
Package / Case [custom]	0.173 "	0.173 "
Package / Case [custom]	4.4 mm	4.4 mm
Supplier Device Package	8-TSSOP	4-SIP, 8-TSSOP
Technology	Hall Effect	Hall Effect
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Axis	Package / Case	Current - Output (Max) [Max]	Bandwidth	Output Type	Features	Technology	Supplier Device Package	Current - Supply (Max) [Max]	Package / Case [custom]	Package / Case [custom]
Allegro MicroSystems A1363LKTTN-2-T	4.5 V	5.5 V	Through Hole	Single	4-SIP Module	10 mA	120 kHz	Analog Voltage	Programmable, Temperature Compensated	Hall Effect	4-SIP	15 mA
Allegro MicroSystems A1363LLUTR-1-T	4.5 V	5.5 V	Surface Mount	Single	8-TSSOP	10 mA	120 kHz	Analog Voltage	Programmable, Temperature Compensated	Hall Effect	8-TSSOP	15 mA	0.173 "	4.4 mm
