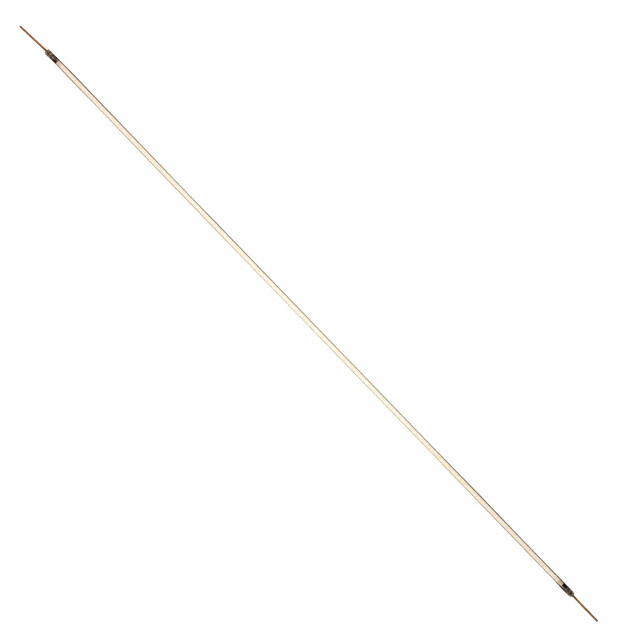

BF22312-45B

Active

JKL Components Corp.

CCFL WH LAMP 1160V 5MA 2.2X312MM

Search across all available documentation for this part.

Active

JKL Components Corp.

CCFL WH LAMP 1160V 5MA 2.2X312MM

Technical Specifications

Parameters and characteristics for this part

Specification	BF22312-45B

Current	5 mA
Output	30000 cd/m2
Size / Dimension [x]	2.2 mm
Size / Dimension [y]	312 mm
Type	CCFL, Tri-Phosphor RGB White Lamp
Voltage	750 V, 1160 V

CCFL WH LAMP 1160V 5MA 2.2X312MM

Part	Output	Current	Type	Voltage	Size / Dimension [x]	Size / Dimension [y]
JKL Components Corp. BF22312-45B	30000 cd/m2	5 mA	CCFL, Tri-Phosphor RGB White Lamp	750 V, 1160 V	2.2 mm	312 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CCFL, Tri-Phosphor RGB White Lamp 1160V (Start), 750V (Operating) 5 mA 30000 cd/m2 2.2mm x 312mm

Technical documentation and resources
