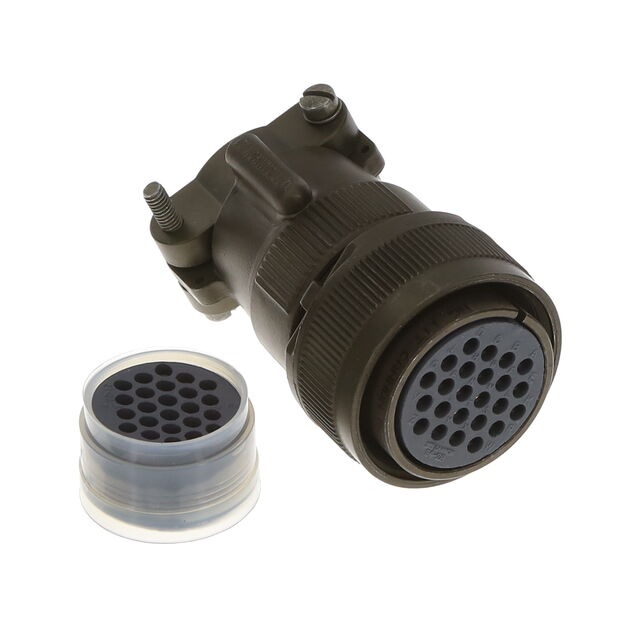

MS3106E24-28S

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Search across all available documentation for this part.

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E24-28S

Applications	Military, Marine
Cable Opening [custom]	0.781 in
Cable Opening [custom]	19.84 mm
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015, MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium, Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	24
Shielding	Unshielded
Voltage Rating	250 VDC, 200 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Material	Primary Material	Mounting Type	Shell Size - Insert	Shell Finish	Number of Positions	Features	Current Rating (Amps)	Voltage Rating	Color	Grade	Connector Type	Orientation	Qualification	Contact Finish - Mating	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shielding	Contact Material	Insert Material	Applications	Cable Opening [custom]	Cable Opening [custom]
ITT Cannon, LLC MS3106E24-2S	-55 °C	125 °C	Environment Resistant	Aluminum Alloy	Metal	Free Hanging (In-Line)	24-2	Olive Drab Cadmium	7	Cable Clamp Coupling Nut	41 A	900 VAC 1250 VDC	Olive Drab	Military	Female Sockets Plug	N	MIL-DTL-5015	Silver
ITT Cannon, LLC MS3106E24-5PF187	-55 °C	125 °C	Environment Resistant	Aluminum Alloy	Metal	Free Hanging (In-Line)	24-5	Olive Drab Cadmium		Cable Clamp Coupling Nut	22 A	500 VAC 700 VDC	Olive Drab	Military	Male Pins Plug	N	MIL-DTL-5015	Silver	16
ITT Cannon, LLC MS3106E24-11P	-55 °C	125 °C	Environment Resistant	Aluminum Alloy	Metal	Free Hanging (In-Line)	24-11	Olive Drab Cadmium	9	Cable Clamp Coupling Nut		500 VAC 700 VDC	Olive Drab	Military	Male Pins Plug	N	MIL-DTL-5015	Silver
ITT Cannon, LLC MS3106E24-28S	-55 °C	125 °C	Environment Resistant	Aluminum Alloy	Metal	Free Hanging (In-Line)		Olive Drab Cadmium Olive Drab Chromate over Cadmium	24	Backshell Cable Clamp Coupling Nut	22 A	200 VAC 250 VDC	Olive Drab	Military	Female Sockets Plug	N	MIL-5015 MIL-DTL-5015	Silver		28	24	Unshielded	Copper Alloy	Neoprene	Marine Military	0.781 in	19.84 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Circular Connector Plug, Female Sockets Solder Cup
