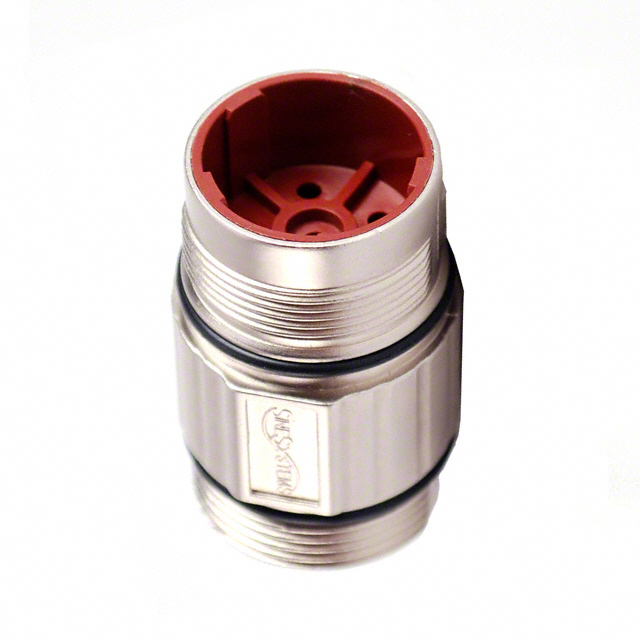

MB1JJN0900

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 9POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MB1JJN0900

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2 mm, 1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Male Pins

Part	Orientation	Shielding	Ingress Protection	Connector Type	Contact Shape	Shell Finish	Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Material Flammability Rating	Mounting Type	Insert Material	Note	Housing Color	Contact Size	Shell Size - Insert	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB1JJN0800	Keyed	Shielded	IP67 - Dust Tight Waterproof	Receptacle Housing	Circular	Nickel	For Male Pins	Zinc Die Cast	-20 C	130 °C	3	8	4	PE	UL94 V-0	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Silver	1 mm 2 mm	M23-8	Crimp
Amphenol Sine Systems Corp MB1JJN0900	Keyed	Shielded	IP67 - Dust Tight Waterproof	Receptacle Housing	Circular	Nickel	For Male Pins	Zinc Die Cast	-20 C	130 °C				PE	UL94 V-0	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Silver	1 mm 2 mm	M23-9	Crimp	3	5	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 8.78

General part information

9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line)
