HF115AC-0.0055-AC-58

Active

Bergquist

THERM PAD 19.05MMX12.7MM W/ADH

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 19.05MMX12.7MM W/ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

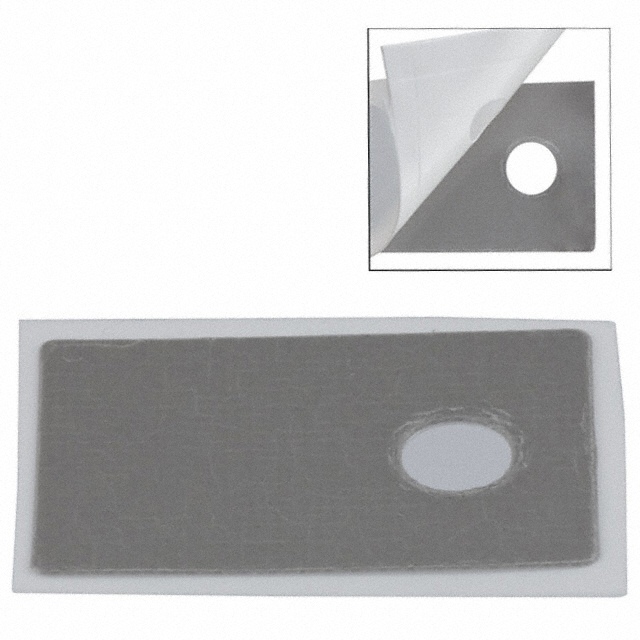

Thermal Pad Gray 19.05mm x 12.70mm Rectangular Adhesive - One Side

Technical documentation and resources

Part	Thermal Resistivity	Material	Shape	Color	Thickness	Thickness	Shelf Life	Shelf Life Start	Adhesive	Backing, Carrier	Thermal Conductivity	Outline [y]	Outline [x]	Usage
Bergquist HF115AC-0.0055-AC-105	0.35 °C/W	Phase Change Compound	Rectangular	Gray	0.14 mm	0.0055 in	12 Months	Date of Manufacture	Adhesive - One Side	Fiberglass	0.8 W/m-K	21.29 mm	36.83 mm	SIP
Bergquist HF115AC-0.0055-AC-90	0.35 °C/W	Phase Change Compound	Rectangular	Gray	0.14 mm	0.0055 in	12 Months	Date of Manufacture	Adhesive - One Side	Fiberglass	0.8 W/m-K	18.79 mm	21.84 mm	TO-218, TO-220, TO-247
Bergquist HF115AC-0.0055-AC-58	0.35 °C/W	Phase Change Compound	Rectangular	Gray	0.14 mm	0.0055 in	12 Months	Date of Manufacture	Adhesive - One Side	Fiberglass	0.8 W/m-K	12.7 mm	19.05 mm	TO-220
