PSEDTEL500F

KOA Speer Electronics, Inc.

RES 500 UOHM 1% 5W NONSTANDARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

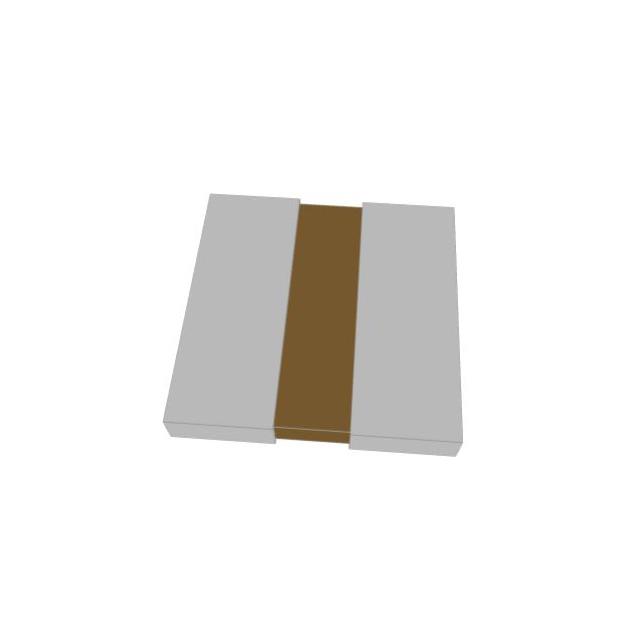

PSEDTEL500F

KOA Speer Electronics, Inc.

RES 500 UOHM 1% 5W NONSTANDARD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.47
	Digi-Reel®	1	$ 2.47
	Tape & Reel (TR)	2000	$ 1.02

Description

General part information

PSEDT Series

0.5 mOhms ±1% 5W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSEDTEL500F	PSEDT Series

Composition	Metal Element	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant	Automotive AEC-Q200, Current Sense, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.035 "	0.03 - 0.035 in
Height - Seated (Max) [Max] [z]	0.9 mm	0.75 - 0.9 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Package / Case	Nonstandard	Nonstandard
Power (Watts)	5 W	5 W
Ratings	AEC-Q200	AEC-Q200
Resistance	0.5 mOhms	0.5 - 2 mOhms
Size / Dimension [x]	0.252 ", 6.4 mm	0.252 - 6.4 "
Size / Dimension [y]	0.252 ", 6.4 mm	0.252 - 6.4 "
Temperature Coefficient	150 ppm/°C	150 ppm/°C
Tolerance	1 %	1 - 5 %

PSEDT Series

RES 1.5M OHM 1% 5W NONSTANDARD

Part	Power (Watts)	Package / Case	Ratings	Size / Dimension [x]	Size / Dimension [y]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Number of Terminations	Composition	Tolerance	Temperature Coefficient
KOA Speer Electronics, Inc. PSEDTE1L50F	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.03 in	0.75 mm	155 °C	-65 ░C	1.5 mOhms	2	Metal Element	1 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTE1L00F	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.035 "	0.9 mm	155 °C	-65 ░C	1 mOhms	2	Metal Element	1 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTE1L0J	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.035 "	0.9 mm	155 °C	-65 ░C	1 mOhms	2	Metal Element	5 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTE2L00F	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.03 in	0.75 mm	155 °C	-65 ░C	2 mOhms	2	Metal Element	1 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTEL50J	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.035 "	0.9 mm	155 °C	-65 ░C	0.5 mOhms	2	Metal Element	5 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTE2L0J	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.03 in	0.75 mm	155 °C	-65 ░C	2 mOhms	2	Metal Element	5 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTE1L5J	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.03 in	0.75 mm	155 °C	-65 ░C	1.5 mOhms	2	Metal Element	5 %	150 ppm/°C
KOA Speer Electronics, Inc. PSEDTEL500F	5 W	Nonstandard	AEC-Q200	0.252 ", 6.4 mm	0.252 ", 6.4 mm	Automotive AEC-Q200, Current Sense, Moisture Resistant	0.035 "	0.9 mm	155 °C	-65 ░C	0.5 mOhms	2	Metal Element	1 %	150 ppm/°C
