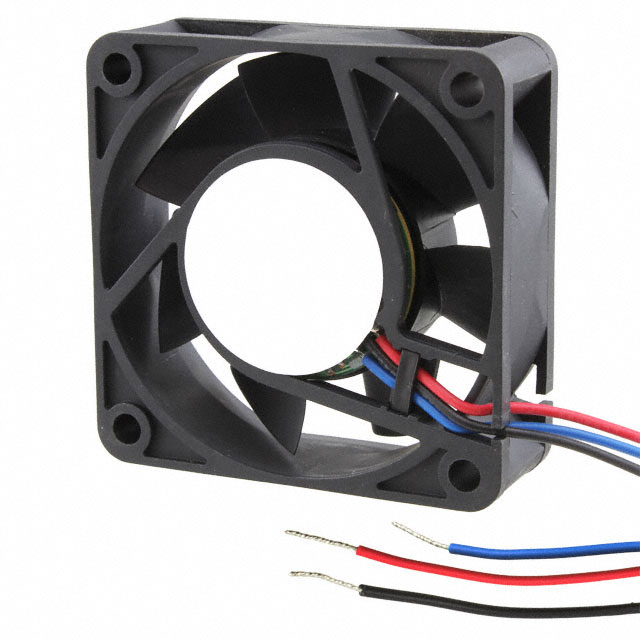

AFB0624HHD-F00

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

AFB0624HHD-F00

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 18.4 CFM (0.515m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Fans VDE Cert

Fans, Blowers CSA Cert

Datasheet

Fans, Electric - Component UL Cert

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0624HHD-F00	AFB0624 Series

Air Flow	18.4 CFM	11.6 - 38.4 CFM
Air Flow	0.515 mł/min	0.325 - 1.08 mł/min
Air Flow	-	27.6 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	70 mA	0.09 - 140 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	31.5 dB	24 - 46.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.68 W	1.2 - 720 W
RPM	4400 RPM	3000 - 6800 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.229 in H2O	0.087 - 0.544 in H2O
Static Pressure	57 Pa	21.7 - 135.5 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	26.4 - 27.6 VDC
Voltage Range [Min]	14 VDC	14 - 21.6 VDC
Weight	62.14 g	33.56 - 80 g
Weight	0.137 lb	0.074 - 0.176 lb
Width	-	15 mm
Width [y]	20 mm	13 - 25.4 mm

AFB0624 Series

FAN AXIAL 60X20MM 24VDC WIRE

Part	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Fan Type	Features	Lifetime @ Temp.	Current Rating (Amps)	Air Flow	Air Flow	RPM	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Termination	Material - Frame	Power (Watts)	Noise	Width [y]	Bearing Type	Air Flow	Ingress Protection	Width [x]
Delta Electronics AFB0624VHD-R00	60 mm	60 mm	62.14 g	0.137 lb	0.275 in H2O	68.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	0.09 A	19.8 CFM	0.554 mł/min	4800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic	2.16 W	33 dB(A)	20 mm	Ball
Delta Electronics AFB0624HH-A	60 mm	60 mm	80 g	0.176 lb	0.294 in H2O	73.2 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs	110 mA		0.773 mł/min	5000 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic	2.64 W	40 dB(A)	25.4 mm	Ball	27.6 CFM
Delta Electronics AFB0624EHDC9	60 mm	60 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	0.24 A	38.4 CFM	1.08 m³/min	6800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic		46.5 dB	25.4 mm	Ball		IP55 - Dust Protected, Water Resistant
Delta Electronics AFB0624VHC	60 mm	60 mm	33.56 g	0.074 lb	0.252 in H2O	62.8 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs	120 mA	27.7 CFM	0.776 mł/min	5400 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic	2.88 W	38 dB(A)	13 mm	Ball
Delta Electronics AFB0624VHD-F00	60 mm	60 mm	62.14 g	0.137 lb	0.275 in H2O	68.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Protection, Speed Sensor (Tach)	70000 Hrs	0.09 A	19.8 CFM	0.554 mł/min	4800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic	2.16 W	33 dB(A)	20 mm	Ball
Delta Electronics AFB0624HB	60 mm	60 mm	44.45 g	0.098 lb	0.155 in H2O	38.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs		15.4 CFM	0.431 m³/min	4000 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic	1.92 W	32 dB		Ball			15 mm
Delta Electronics AFB0624LB	60 mm	60 mm	44.45 g	0.098 lb	0.087 in H2O	21.7 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs	40 mA	11.6 CFM	0.325 mł/min	3000 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic		24 dB		Ball			15 mm
Delta Electronics AFB0624MBAV8	60 mm	60 mm	44.45 g	0.098 lb	0.119 in H2O	29.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	60 mA	13.5 CFM	0.378 m³/min	3500 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic	1.44 W	29 dB(A)		Ball			15 mm
Delta Electronics AFB0624EH-SP50	60 mm	60 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	26.4 VDC	21.6 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	70000 Hrs	0.24 A	38.4 CFM	1.08 m³/min	6800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	4 Wire Leads	Plastic		46.5 dB	25.4 mm	Ball
Delta Electronics AFB0624EH-ABR00	60 mm	60 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	0.24 A	38.4 CFM	1.08 m³/min	6800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic		46.5 dB	25.4 mm	Ball
