385755-001

Active

Laird Thermal Systems, Inc.

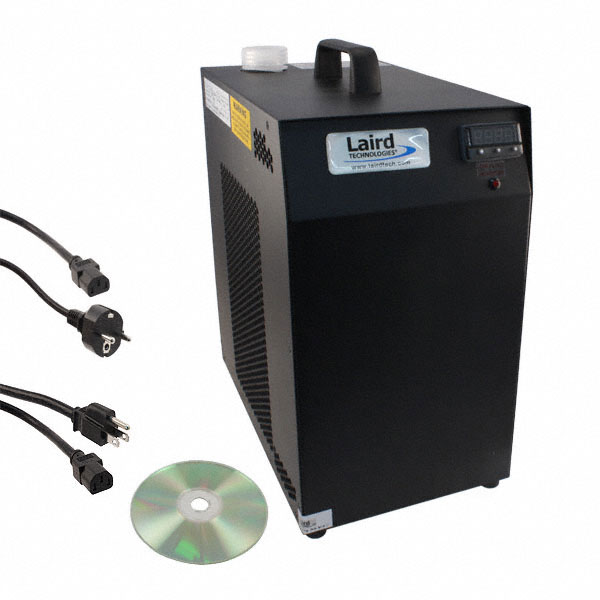

RECIRC CHILLER 3.3LPM 290W 8.5A

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

RECIRC CHILLER 3.3LPM 290W 8.5A

Technical Specifications

Parameters and characteristics for this part

Specification	385755-001

Connection Type	3/8" Quick Connect
Current	8.5 A
Dimensions - Overall [x]	13.31 "
Dimensions - Overall [x]	338 mm
Dimensions - Overall [y]	7.99 in
Dimensions - Overall [y]	203 mm
Dimensions - Overall [z]	15.39 in
Dimensions - Overall [z]	391 mm
Features	Temperature Control
Flow Rate	3.3 LPM
Flow Rate	0.87 GPM
Fluid Capacity	15.2 oz
Fluid Capacity	450 ML
Power - Cooling	290 W
Power Input	507 W
Product Type	Active, Recirculating Chiller
Ratings	UL61010-1
Voltage [Max]	240 VAC
Voltage [Min]	115 VAC
Weight	30 lbs
Weight	13.6 kg

RECIRC CHILLER 3.3LPM 290W 8.5A

Part	Current	Weight	Weight	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [z]	Power - Cooling	Connection Type	Power Input	Fluid Capacity	Fluid Capacity	Product Type	Features	Voltage [Max]	Voltage [Min]	Flow Rate	Flow Rate	Ratings
Laird Thermal Systems, Inc. 385755-001	8.5 A	30 lbs	13.6 kg	7.99 in	13.31 "	338 mm	15.39 in	203 mm	391 mm	290 W	3/8" Quick Connect	507 W	15.2 oz	450 ML	Active, Recirculating Chiller	Temperature Control	240 VAC	115 VAC	3.3 LPM	0.87 GPM	UL61010-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2807.64

General part information

Active, Recirculating Chiller 115 ~ 240VAC 290 W 8.5 A 0.87GPM (3.3LPM)
