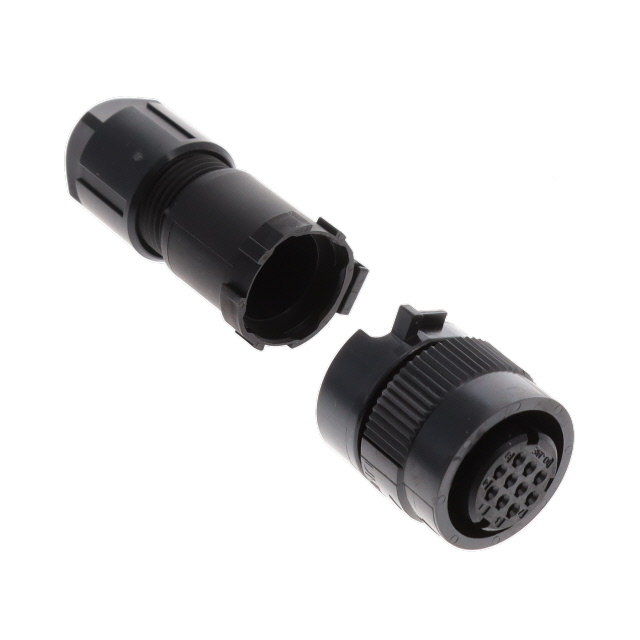

JN1VDS10SL2
ActiveJAE Electronics
CONN PLG HSG FMALE 10POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN1VDS10SL2
ActiveJAE Electronics
CONN PLG HSG FMALE 10POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN1VDS10SL2 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 22 |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | N |
| Shell Material | Synthetic Resin |
| Shell Size - Insert | S |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.45 | |
| 10 | $ 12.28 | |||
| 25 | $ 11.51 | |||
| 50 | $ 10.96 | |||
| 100 | $ 10.44 | |||
| 250 | $ 9.79 | |||
| 500 | $ 9.32 | |||
| 1000 | $ 8.88 | |||
Description
General part information
JN1VDS10 Series
10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
