AWG28-64/G/300

Unknown

Assmann WSW Components

CBL RIBN 64COND 0.05 GRAY 10'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 64COND 0.05 GRAY 10'

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-64/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Length	15.24 m
Length	50 ft
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	64
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	81.28 mm
Ribbon Width [y]	3.2 in
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Jacket (Insulation) Material	Spool Size	Spool Size	Ratings	Number of Conductors	First Conductor Mark	Jacket Color	Insulation Resistance	Length	Ribbon Width [y]	Ribbon Width [y]	Pitch [x]	Pitch [x]	Conductor Material	Length	Length	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Operating Temperature	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	Voltage	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]
Assmann WSW Components AWG28-64/F/300	Poly-Vinyl Chloride (PVC)	300 ft	91.44 m	UL Style 2651	64	Red	Multiple	100 MOhms	Enter Number of Feet in Order Quantity	81.28 mm	3.2 in	0.05 in	1.27 mm	Copper Tinned	25 ft	7.62 m	28 AWG	0.89 mm	0.035 in	105 C	Flat Cable	7	36 AWG	Unshielded	300 V
Assmann WSW Components AWG28-64/G/300	Poly-Vinyl Chloride (PVC)	300 ft	91.44 m	UL Style 2651	64	Red	Gray	100 MOhms	Enter Number of Feet in Order Quantity	81.28 mm	3.2 in	0.05 in	1.27 mm	Copper Tinned	50 ft	15.24 m	28 AWG	0.89 mm	0.035 in		Flat Cable	7	36 AWG	Unshielded	300 V	3.05 m 30.48 m	10 ft 100 ft	105 ░C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

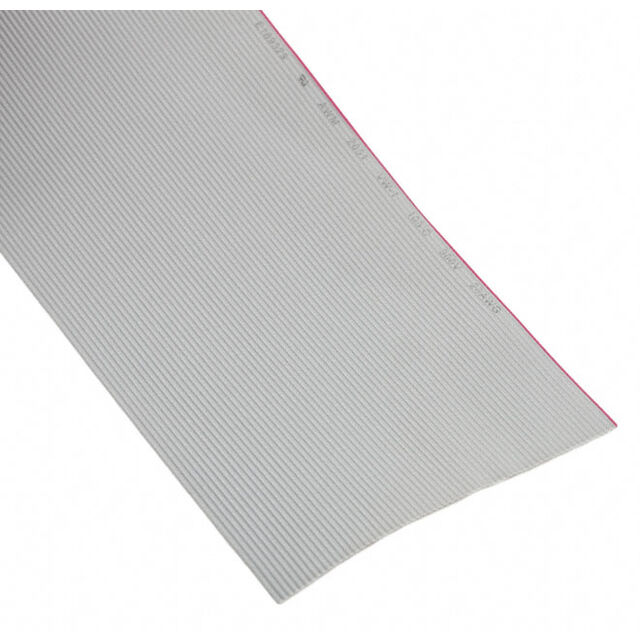

Flat Ribbon Cable Gray 64 Conductors 0.050" (1.27mm) Flat Cable 10.0' (3.05m)
