T4140412021-000
ActiveTE Connectivity AMP Connectors

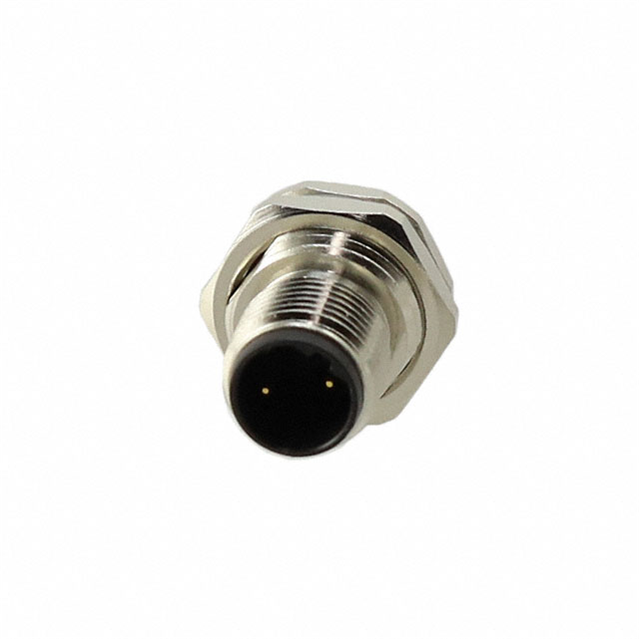

CONN RCPT MALE 2POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4140412021-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 2POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4140412021-000 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-2 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.44 | |
| 10 | $ 4.76 | |||
| 100 | $ 4.27 | |||
| 1000 | $ 3.54 | |||
T41404 Series
CONN RCPT MALE 2POS GOLD SOLDER
| Part | Color | Insert Material | Contact Finish - Mating | Shell Finish | Connector Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Number of Positions | Material Flammability Rating | Shell Size - Insert | Termination | Current Rating (Amps) | Primary Material | Ingress Protection | Mounting Feature | Applications | Contact Material | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4140412021-000 | Silver | Polyamide (PA66), Nylon 6/6 | Gold | Nickel | Male Pins, Receptacle | 250 VDC | 85 °C | -40 °C | B | 2 | UL94 V-0 | M12-2 | Solder | 4 A | Metal | IP67 - Dust Tight, Waterproof | Bulkhead - Front Side Nut | Industrial | Copper Alloy | Copper Alloy | 3 µin | 0.076 µm | Unshielded | Panel Mount, Through Hole |
Description
General part information
T41404 Series
2 Position Circular Connector Receptacle, Male Pins Solder
