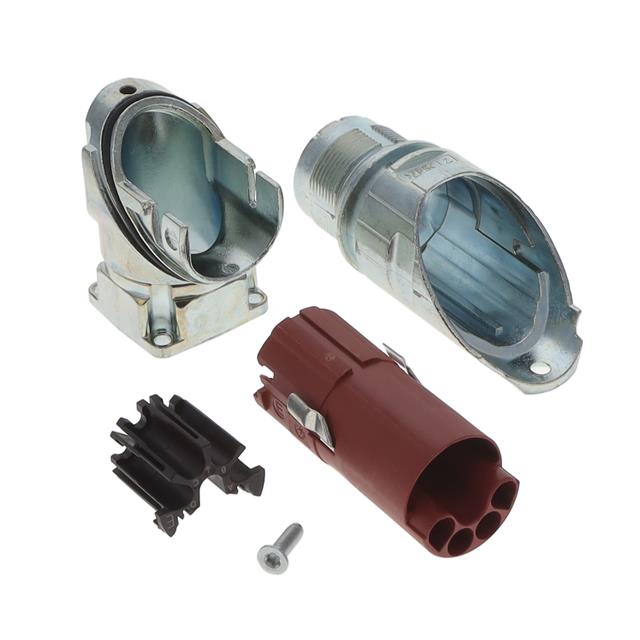

HGC011N00003200000

Active

TE Intercontec

CONN RCPT HSG MALE 11P PNL MT RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 11P PNL MT RA

Technical Specifications

Parameters and characteristics for this part

Specification	HGC011N00003200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions	11 (6 + 4 Power + PE)
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Brass and Zinc Die Cast
Shell Size - Insert	M23-11
Shielding	Shielded
Type	For Male Pins

Part	Connector Type	Shell Size - Insert	Shell Material	Material Flammability Rating	Mounting Feature	Features	Insert Material	Type	Housing Color	Mounting Type	Contact Shape	Fastening Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Finish	Number of Positions	Ingress Protection	Shielding
TE Intercontec HGC011N00003200000	Receptacle Housing	M23-11	Brass and Zinc Die Cast	UL94 V-0	Flange	Backshell Rotatable	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Male Pins	Silver	Panel Mount Right Angle	Circular	Push-Twist	Contacts Not Included	-20 C	130 °C	Keyed	Nickel	11 (6 + 4 Power + PE)	IP66/IP67	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (6 + 4 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
