Q-0D0440003012i

Active

Amphenol Custom Cable

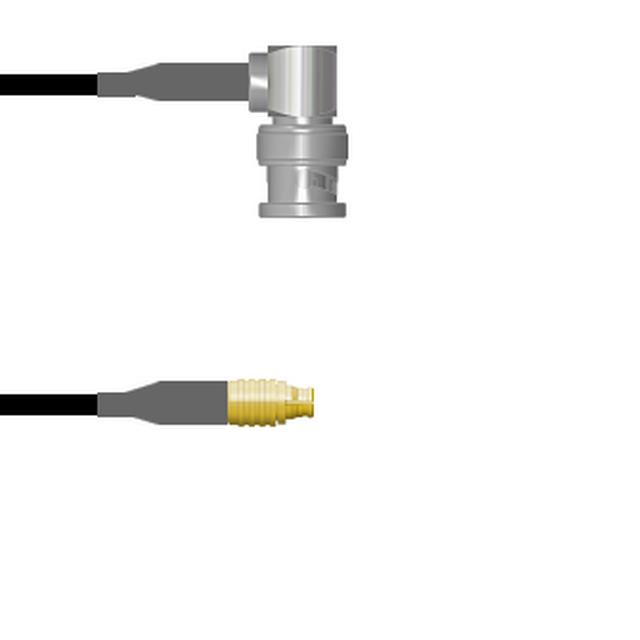

CBL ASSY BNC-SMP PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D0440003012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D0440003012i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-0D0440 Series

Part	Overall Impedance	1st Contact Gender	Cable Type	1st Connector Mounting Type	Style	2nd Connector	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	Length	Length	Length	Features	Color	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0D0440005048i	50 Ohms	Male	RG-316	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1200 mm	4 ft	48 in	Shielded	Copper	Male
Amphenol Custom Cable Q-0D0440005018i	50 Ohms	Male	RG-316	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz				Shielded	Copper	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D0440003012i	50 Ohms	Male	RG-174	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	304.8 mm		12 "	Shielded	Black	Male
Amphenol Custom Cable Q-0D0440005.25M	50 Ohms	Male	RG-316	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz				Shielded	Copper	Male		250 mm	9.843 "
Amphenol Custom Cable Q-0D04400051.5M	50 Ohms	Male	RG-316	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1.5 m	4.9 ft	59.1 in	Shielded	Copper	Male
Amphenol Custom Cable Q-0D04400050.5M	50 Ohms	Male	RG-316	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	50 cm		19.69 "	Shielded	Copper	Male
Amphenol Custom Cable Q-0D0440003018i	50 Ohms	Male	RG-174	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz				Shielded	Black	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D0440005012i	50 Ohms	Male	RG-316	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	304.8 mm		12 "	Shielded	Copper	Male
Amphenol Custom Cable Q-0D0440003001M	50 Ohms	Male	RG-174	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	1 m	3.3 ft	39.4 in	Shielded	Black	Male
Amphenol Custom Cable Q-0D0440003009i	50 Ohms	Male	RG-174	Free Hanging (In-Line)	BNC to SMP	SMP Plug	Free Hanging (In-Line)	BNC Plug Right Angle	4 GHz	228.6 mm		9 "	Shielded	Black	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 110.63
		25	$ 108.48
		50	$ 106.32
		100	$ 104.17
		250	$ 102.02

Description

General part information

Q-0D0440 Series

Cable Assembly Coaxial BNC to SMP RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
