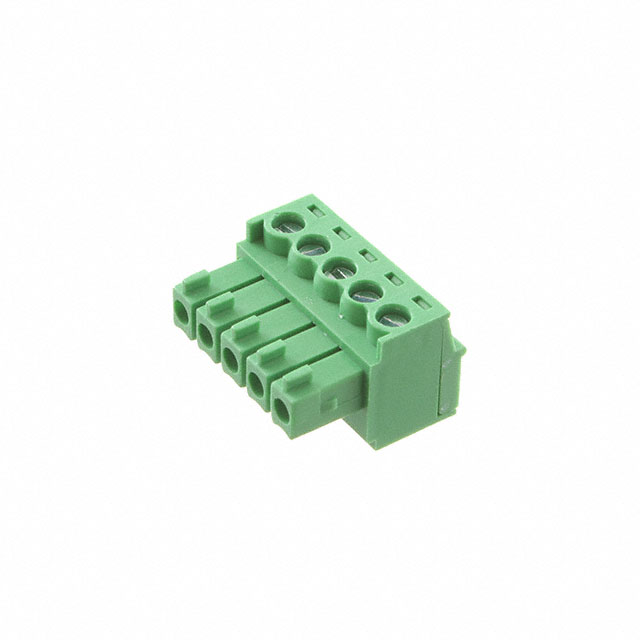

EBKA-05-A

Active

Adam Tech

EURO BLOCK 5P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 5P

Technical Specifications

Parameters and characteristics for this part

Specification	EBKA-05-A

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Nickel
Current - UL	8 A
Insulation Height	0.441 "
Insulation Height	11.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	5
Screw Size	M2
Termination Style	Screw - Leaf Spring, Wire Guard
Torque - Screw	0.2 Nm
Torque - Screw	1.7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

Part	Screw Size	Type	Torque - Screw	Torque - Screw	Termination Style	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current - UL	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Levels	Positions Per Level	Mounting Type	Contact Mating Finish	Insulation Height	Insulation Height	Color	Material Flammability Rating	Voltage - UL	Number of Positions
Adam Tech EBKA-05-B	M2	Plug Female Sockets	0.2 Nm	1.7 Lb-In	Screw - Leaf Spring Wire Guard	0.15 in	3.81 mm	-40 °C	105 ░C	Phosphor Bronze	8 A	7 mm	6 mm	1	5	Free Hanging (In-Line)	Nickel	0.441 "	11.2 mm	Green	UL94 V-0	300 V
Adam Tech EBKA-03-B	M2	Plug Female Sockets	0.2 Nm	1.7 Lb-In	Screw - Leaf Spring Wire Guard	0.15 in	3.81 mm	-40 °C	105 ░C	Phosphor Bronze	8 A	7 mm	6 mm	1	3	Free Hanging (In-Line)	Nickel	0.441 "	11.2 mm	Green	UL94 V-0	300 V
Adam Tech EBKA-05-A	M2	Plug Female Sockets	0.2 Nm	1.7 Lb-In	Screw - Leaf Spring Wire Guard	0.138 in	3.5 mm	-40 °C	105 ░C	Phosphor Bronze	8 A	7 mm	6 mm	1	5	Free Hanging (In-Line)	Nickel	0.441 "	11.2 mm	Green	UL94 V-0	300 V
Adam Tech EBKA-02-A	M2	Plug Female Sockets	0.2 Nm	1.7 Lb-In	Screw - Leaf Spring Wire Guard	0.138 in	3.5 mm	-40 °C	105 ░C	Phosphor Bronze	8 A	7 mm	6 mm	1	2	Free Hanging (In-Line)	Nickel	0.441 "	11.2 mm	Green	UL94 V-0	300 V	2
Adam Tech EBKA-04-A	M2	Plug Female Sockets	0.2 Nm	1.7 Lb-In	Screw - Leaf Spring Wire Guard	0.138 in	3.5 mm	-40 °C	105 ░C	Phosphor Bronze	8 A	7 mm	6 mm	1	4	Free Hanging (In-Line)	Nickel	0.441 "	11.2 mm	Green	UL94 V-0	300 V	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
