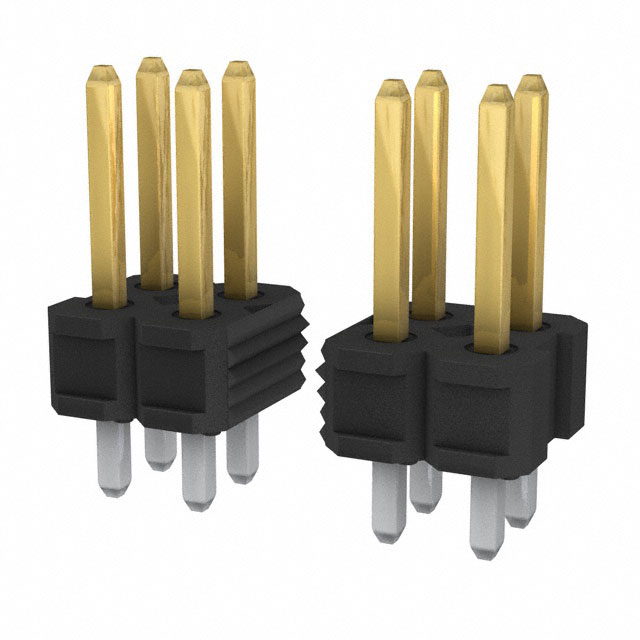

Specification	75844-648-26LF

Connector Type	Breakaway, Header
Contact Finish - Mating	GXT™, Gold
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.23 in
Contact Length - Post	0.095 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-65 °C
Overall Contact Length	0.425 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	110 VDC

75844 Series

...

Part	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Mounting Type	Number of Rows	Overall Contact Length	Termination	Connector Type	Contact Length - Mating	Contact Length - Post	Number of Positions Loaded	Shrouding	Contact Shape	Contact Finish - Mating	Voltage Rating	Number of Positions	Current Rating	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Row Spacing - Mating	Pitch - Mating	Insulation Material	Contact Type	Style	Material Flammability Rating
Amphenol ICC (FCI) 75844-648-26LF	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.425 in	Solder	Breakaway Header	0.23 in	0.095 in	All	Unshrouded	Square	Gold GXT™	110 VDC	26	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-150-72	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.453 in	Solder	Breakaway Header	0.23 in	0.123 in	All	Unshrouded	Square	Gold GXT™		72		Black			0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-148-12LF	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.425 in	Solder	Breakaway Header	0.23 in	0.095 in	All	Unshrouded	Square	Gold GXT™	110 VDC	12	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-118-06LF	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.445 in	Solder	Breakaway Header	0.225 in	0.12 in	All	Unshrouded	Square	Gold GXT™	110 VDC	6	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-128-06LF	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.525 in	Solder	Breakaway Header	0.26 in	0.165 in	All	Unshrouded	Square	Gold GXT™	110 VDC	6	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-101-28LF	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.425 in	Solder	Breakaway Header	0.225 in	0.1 in	All	Unshrouded	Square	Gold GXT™	110 VDC	28	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-101-14	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.425 in	Solder	Breakaway Header	0.225 in	0.1 in	All	Unshrouded	Square	Gold GXT™	110 VDC	14	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-116-12LF	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.652 in	Solder	Breakaway Header	0.335 in	0.217 in	All	Unshrouded	Square	Gold GXT™	110 VDC	12	5 A	Black	-65 °C	130 °C	0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-129-14	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.925 in	Solder	Breakaway Header	0.69 in	0.135 in	All	Unshrouded	Square	Gold GXT™		14		Black			0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
Amphenol ICC (FCI) 75844-140-26	30 µin	Phosphor Bronze	Push-Pull	Through Hole	2	0.625 in	Solder	Breakaway Header	0.405 in	0.12 in	All	Unshrouded	Square	Gold GXT™		26		Black			0.1 in	0.1 in	0.1 in	Thermoplastic	Male Pin	Board Board or Cable	UL94 V-0
