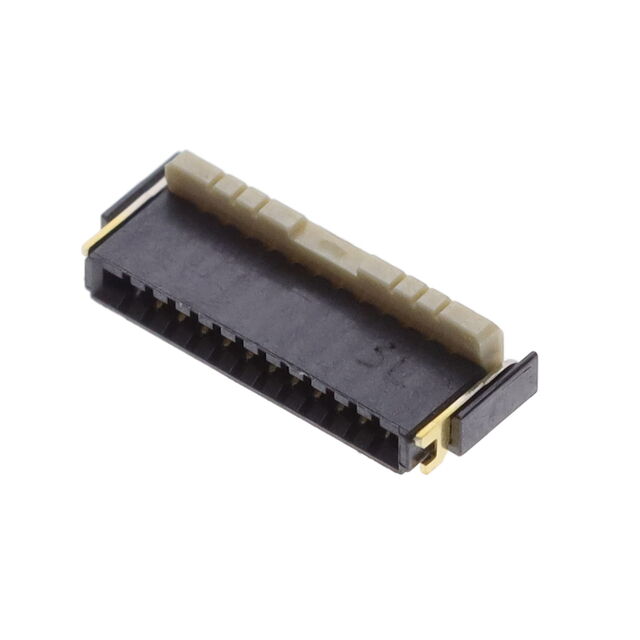

AYF531065T

Active

Panasonic Electric Works

CONN FPC 10POS 0.5MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FPC 10POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF531065T

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Notched
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Housing Material	Termination	Connector/Contact Type	Material Flammability Rating	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Actuator Material	Locking Feature	Voltage Rating	Contact Material	Mounting Type	Contact Finish	Flat Flex Type	Number of Positions	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Cable End Type	Current Rating (Amps)
Panasonic Electric Works AYF531065T	Liquid Crystal Polymer (LCP)	Solder	Contacts Top and Bottom	UL94 V-0	0.3 mm	85 °C	-55 °C	0.5 mm	0.02 in	Liquid Crystal Polymer (LCP)	Backlock Flip Lock	50 V	Copper Alloy	Surface Mount Right Angle	Gold	FPC	10	20	1 mm	0.039 in	Notched	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
