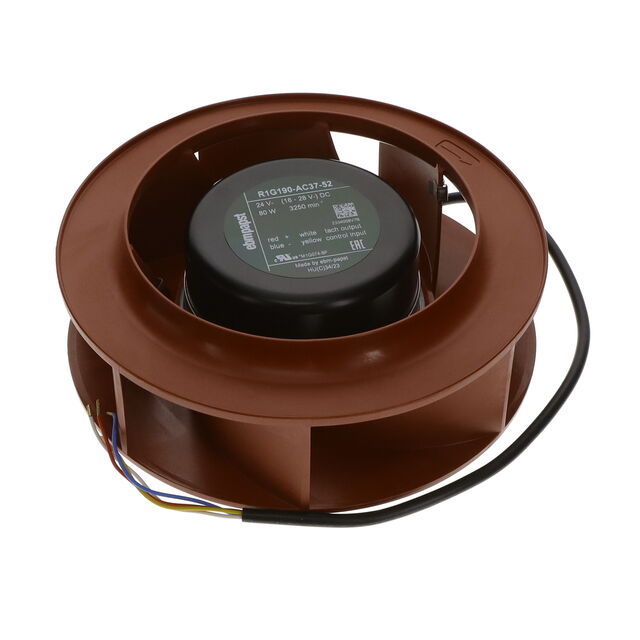

R1G190-AC37-52

Active

ebm-papst Inc.

FAN IMP MTRZD 190X68.5MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 190X68.5MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	R1G190-AC37-52

Approval Agency	CSA, UL, EAC
Bearing Type	Ball
Current Rating (Amps)	3.7 A
Fan Type	Motorized Impellers
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP42
Material - Blade	Polyamide (PA6), Nylon 6, Fiberglass Reinforced
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	80 W
RPM	3250 RPM
Size / Dimension	Round
Size / Dimension [diameter]	190 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Weight	2.9 lbs
Weight	1.3 kg
Width [x]	68.5 mm

Part	Termination	Width [y]	Power (Watts)	Size / Dimension	Size / Dimension [diameter]	Features	Noise	Material - Blade	RPM	Approval Agency	Fan Type	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Voltage - Rated	Voltage - Rated [custom]	Ingress Protection	Width [x]	Weight	Weight
ebm-papst Inc. R1G190-AB27-02	4 Wire Leads with Splice Terminals	72 mm	51 W	Round	190 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	68 dB	Nylon Polyamide (PA)	2950 RPM	EAC	Motorized Impellers	2.3 A	16 VDC	28 VDC	-25 °C	40 °C	40 °C	-25 °C	Ball	24 VDC
ebm-papst Inc. R1G190-AB25-02	4 Wire Leads with Splice Terminals		51 W	Round	190 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	68 dB	Fiberglass Reinforced Nylon 6/6 Polyamide (PA66)	2950 RPM	CCC EAC	Motorized Impellers	1.2 A	36 VDC	57 VDC	-25 °C	40 °C	40 °C	-25 °C	Ball		48 VDC	IP22	68.5 mm
ebm-papst Inc. R1G190-AC37-52	4 Wire Leads		80 W	Round	190 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Polyamide (PA6) Nylon 6 Fiberglass Reinforced	3250 RPM	CSA EAC UL	Motorized Impellers	3.7 A	16 VDC	28 VDC	-25 °C	60 °C			Ball	24 VDC		IP42	68.5 mm	2.9 lbs	1.3 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 24VDC Round - 190mm Dia Ball 4 Wire Leads
