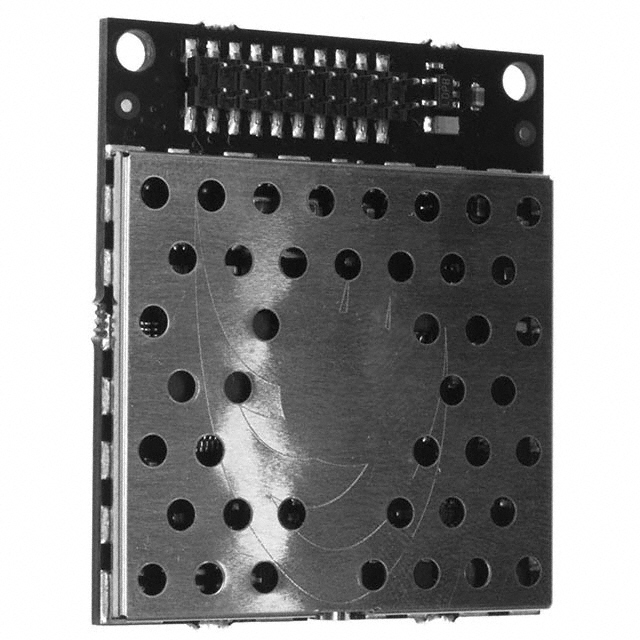

AC4490-1000M

Active

Ezurio LLC

RF TXRX MOD ISM<1GHZ MMCX CHAS

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD ISM<1GHZ MMCX CHAS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, MMCX Chassis Mount

Specification	AC4490-1000M	AC4490 Series

Antenna Type	Antenna Not Included, MMCX	Antenna Not Included, Castellation, Antenna Not Included, MMCX
Current - Receiving	650 mA	68 - 650 mA
Current - Transmitting	650 mA	68 - 650 mA
Data Rate	115.2 kbps	115.2 kbps
Frequency	900 MHz	900 MHz
Frequency	-	902 MHz
Frequency	-	928 MHz
Modulation	FSK, FHSS	FSK, FHSS
Mounting Type	Chassis Mount	Surface Mount, Chassis Mount
Operating Temperature [Max]	80 C	80 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	28-SMD Module, Module
Power - Output	30 dBm	10 - 30 dBm
RF Family/Standard	General ISM < 1GHz	General ISM < 1GHz
Sensitivity	-110 dBm	-110 - -99 dBm
Serial Interfaces	UART	UART
Voltage - Supply	-	3.3 V
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	3.3 V	3.3 V

Part	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Antenna Type	Sensitivity	Frequency [Min]	Frequency [Max]	Mounting Type	Package / Case	Power - Output	Current - Receiving	Current - Transmitting	RF Family/Standard	Serial Interfaces	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency
Ezurio LLC AC4490-1X1	3.3 V	85 °C	-40 °C	FHSS, FSK	Antenna Not Included, Castellation	-99 dBm	902 MHz	928 MHz	Surface Mount	28-SMD Module	10 dBm
Ezurio LLC AC4490-1000M		80 C	-40 °C	FHSS, FSK	Antenna Not Included, MMCX	-110 dBm			Chassis Mount	Module	30 dBm	650 mA	650 mA	General ISM < 1GHz	UART	115.2 kbps	3.3 V	5.5 V	900 MHz
Ezurio LLC AC4490-200M		80 C	-40 °C	FHSS, FSK	Antenna Not Included, MMCX	-110 dBm			Chassis Mount	Module	23 dBmW	68 mA	68 mA	General ISM < 1GHz	UART	115.2 kbps	3.3 V	5.5 V	900 MHz
