Q-2F0690008024i

Active

Amphenol Custom Cable

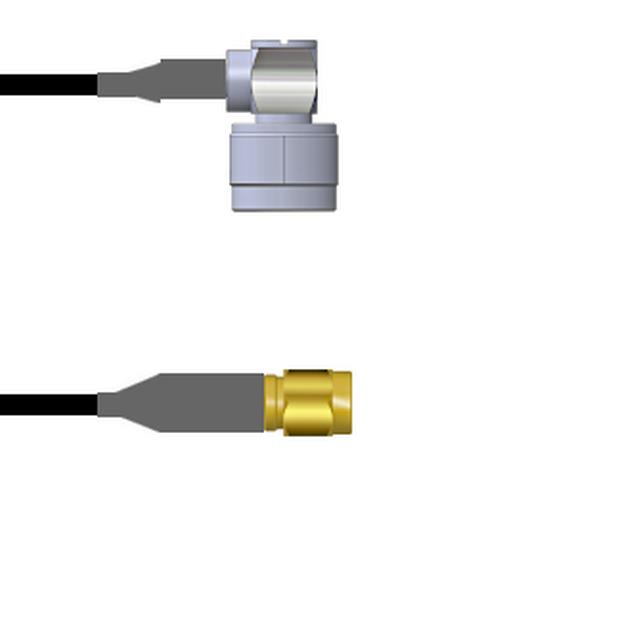

CBL ASSY RPSMA-NTYPE PLG-PLG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2F0690008024i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PLG-PLG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2F0690008024i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-2F0690 Series

Part	Features	2nd Connector	Color	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Cable Type	2nd Contact Gender	1st Contact Gender	1st Connector	Length	Length	Style	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-2F0690008006i	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	152.4 mm	6 in	RP-SMA to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0690008108i	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	2.7 m	108 in	RP-SMA to N-Type	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-2F06900081.5M	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	1.5 m	59.1 in	RP-SMA to N-Type	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2F0690008048i	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	1200 mm	48 in	RP-SMA to N-Type	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-2F0690008009i	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	228.6 mm	9 "	RP-SMA to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F06900080.5M	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	50 cm	19.69 "	RP-SMA to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0690008.75M	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	750 mm	29.53 "	RP-SMA to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0690008024i	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	609.6 mm	24 "	RP-SMA to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0690008084i	Shielded	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	50 Ohms	11 GHz	RG-58	Male	Female	RP-SMA Plug	2.1 m	84 in	RP-SMA to N-Type	Free Hanging (In-Line)	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.39
		25	$ 84.40
		50	$ 83.41
		100	$ 82.42
		250	$ 81.43

Description

General part information

Q-2F0690 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-58 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
