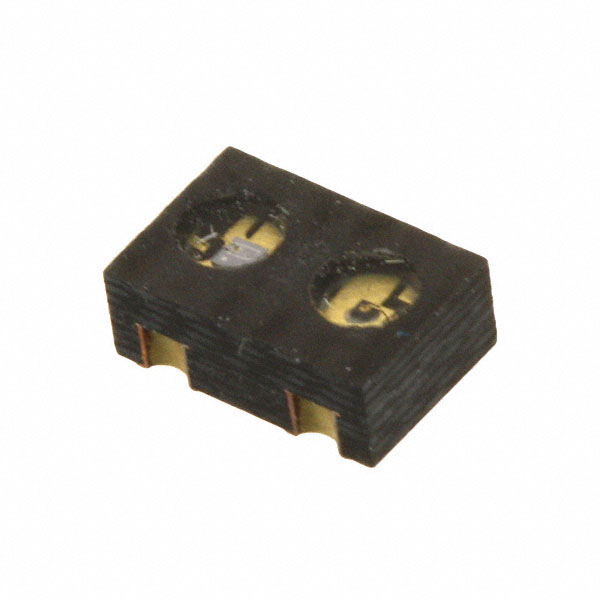

OPR5005TR

Active

TT Electronics/Optek Technology

SENSOR REFLECTIVE

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Specification	OPR5005TR

Current - Collector (Ic) (Max) [Max]	25 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, No Lead
Sensing Distance	0.05 in
Sensing Distance	1.27 mm
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

SENSOR REFLECTIVE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - DC Forward (If) (Max)	Sensing Distance	Sensing Distance	Sensing Method	Mounting Type	Current - Collector (Ic) (Max) [Max]
TT Electronics/Optek Technology OPR5005TR	-55 °C	125 °C	30 V	4-SMD, No Lead	50 mA	0.05 in	1.27 mm	Reflective	Surface Mount	25 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.050" (1.27mm) 4-SMD, No Lead
