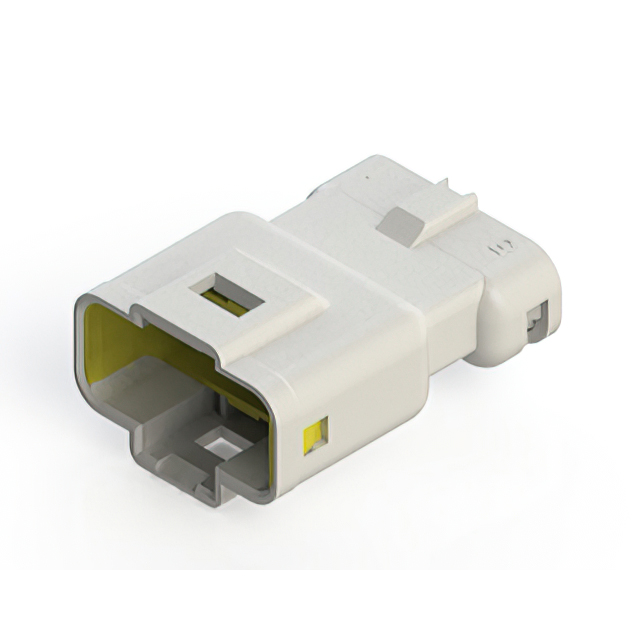

560-005-000-111

Active

EDAC Inc.

CONN PLUG HSG 5POS 2.50MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN PLUG HSG 5POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	560-005-000-111

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Features	Insulation Material	Color	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Fastening Type	Note	Contact Type	Number of Rows
EDAC Inc. 560-005-000-210	Waterproof	Polybutylene Terephthalate (PBT)	White	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	Receptacle	Free Hanging (In-Line)	Latch Lock	Contacts Not Included	Female Socket	1
EDAC Inc. 560-005-000-111	Waterproof	Polybutylene Terephthalate (PBT)	White	Crimp	-40 °C	105 ░C	0.098 in	2.5 mm	Plug	Free Hanging (In-Line)	Latch Holder	Contacts Not Included	Male Pin	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)
