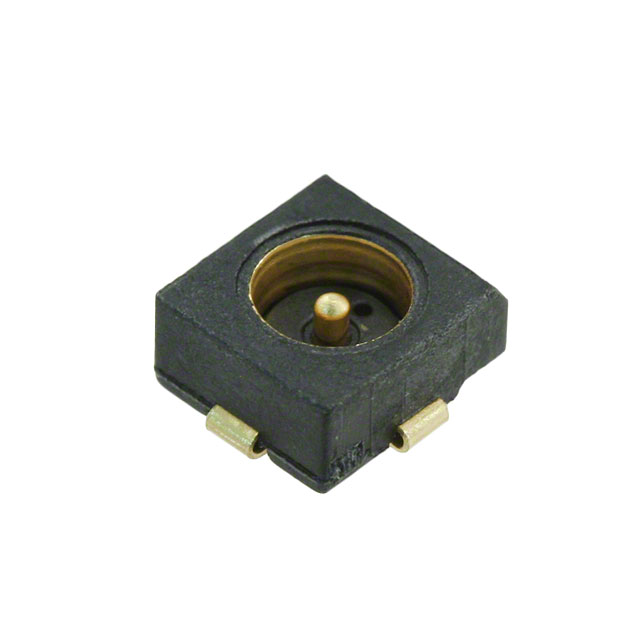

1055689-1
ActiveTE Connectivity AMP Connectors
CONN OSMT RCPT STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1055689-1
ActiveTE Connectivity AMP Connectors
CONN OSMT RCPT STR 50 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1055689-1 | 1055 Series |
|---|---|---|
| - | - | |
| Accessory Type | - | Hermetic Seal, Gasket |
| Adapter Series | - | SMA to SMA, OSM to OSM |
| Adapter Type | - | Jack to Jack, Plug to Jack |
| Body Finish | - | Gold |
| Body Material | - | Stainless Steel, Nickel-Cobalt |
| Center Contact Finish | - | Gold |
| Center Contact Material | Copper Alloy | Beryllium Copper, Nickel-Cobalt, Copper Alloy |
| Center Contact Plating | Gold | Gold |
| Center Gender | - | Female to Female |
| Color | - | Gold |
| Connector Style | OSMT | OSMT |
| Connector Type | Male Pin, Receptacle | Male Pin, Receptacle |
| Contact Termination | Microstrip, Solder | Microstrip, Solder |
| Conversion Type | - | Same Series |
| Convert From (Adapter End) | - | Female Socket, SMA Jack, SMA Plug, Male Pin |
| Convert To (Adapter End) | - | SMA Jack, Female Socket |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polytetrafluoroethylene (PTFE), Polyphenylene Sulfide (PPS) |
| Fastening Type | Snap-On | Snap-On |
| Frequency - Max [Max] | 6000 MHz | 18 - 6000 GHz |
| Impedance | 50 Ohms | 50 Ohms |
| Mating Cycles | - | 500 |
| Mounting Type | Surface Mount | Free Hanging (In-Line), Right Angle, Surface Mount |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -65 - -40 ░C |
| Shield Termination | Solder | Solder |
| Style | - | Right Angle |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.41 | |
| 10 | $ 3.92 | |||
| 25 | $ 3.90 | |||
| 50 | $ 3.86 | |||
| 100 | $ 3.48 | |||
| 250 | $ 3.46 | |||
| 500 | $ 3.20 | |||
| 1000 | $ 2.86 | |||
| Digi-Reel® | 1 | $ 4.41 | ||
| 10 | $ 3.92 | |||
| 25 | $ 3.90 | |||
| 50 | $ 3.86 | |||
| 100 | $ 3.48 | |||
| 250 | $ 3.46 | |||
| 500 | $ 3.20 | |||
| 1000 | $ 2.86 | |||
| Tape & Reel (TR) | 3000 | $ 2.64 | ||
1055 Series
CONN ADAPT JACK-JACK SMA 50 OHM
| Part | Conversion Type | Body Material | Style | Dielectric Material | Adapter Type | Frequency - Max [Max] | Impedance | Convert From (Adapter End) | Mounting Type | Adapter Series | Center Contact Plating | Center Gender | Convert To (Adapter End) | Center Contact Material | Mating Cycles | Color | Body Finish | Center Contact Finish | Accessory Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Contact Termination | Fastening Type | Shield Termination | Connector Type | Number of Ports | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1055018-1 | Same Series | Stainless Steel | Right Angle | Polytetrafluoroethylene (PTFE) | Jack to Jack | 18 GHz | 50 Ohms | Female Socket, SMA Jack | Free Hanging (In-Line), Right Angle | SMA to SMA | Gold | Female to Female | Female Socket, SMA Jack | Beryllium Copper | 500 | |||||||||||||
TE Connectivity AMP Connectors 1055331-1 | Nickel-Cobalt | Nickel-Cobalt | Gold | Gold | Gold | Hermetic Seal | ||||||||||||||||||||||
TE Connectivity AMP Connectors 1055344-1 | Gasket | |||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1055069-1 | Same Series | Stainless Steel | Right Angle | Polytetrafluoroethylene (PTFE) | Plug to Jack | 18 GHz | 50 Ohms | SMA Plug, Male Pin | Free Hanging (In-Line), Right Angle | OSM to OSM | Gold | Female Socket, SMA Jack | Beryllium Copper | 500 | Gold | 125 °C | -65 ░C | |||||||||||
TE Connectivity AMP Connectors 1055330-1 | ||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1055689-1 | Polyphenylene Sulfide (PPS) | 6000 MHz | 50 Ohms | Surface Mount | Gold | Copper Alloy | 125 °C | -40 °C | OSMT | Microstrip, Solder | Snap-On | Solder | Male Pin, Receptacle | 1 | 250 VDC | |||||||||||||
TE Connectivity AMP Connectors 1055690-1 | Polyphenylene Sulfide (PPS) | 6000 MHz | 50 Ohms | Surface Mount | Gold | Copper Alloy | 125 °C | -40 °C | OSMT | Microstrip, Solder | Snap-On | Solder | Male Pin, Receptacle | 1 |
Description
General part information
1055 Series
OSMT Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder, Microstrip
