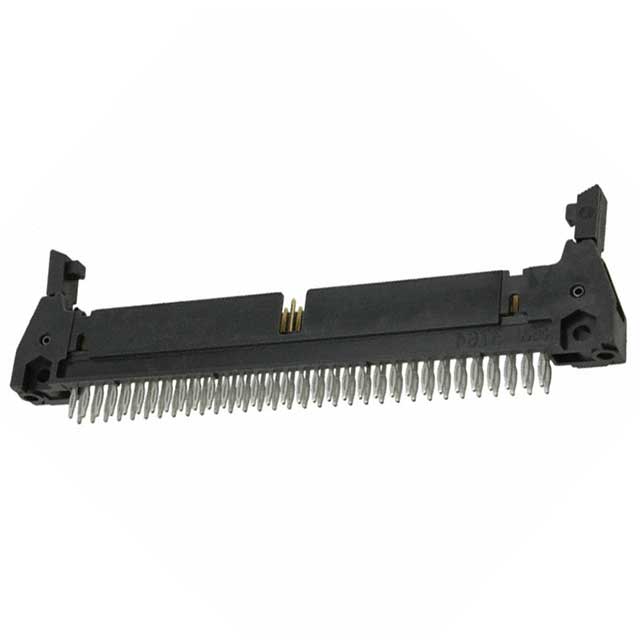

N3764-630T02RB

Active

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3764-630T02RB

Active

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3764-630T02RB	N3764 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	300 µin	200 - 300 µin
Contact Finish Thickness - Post	7.62 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	4.45 mm	2.84 - 4.45 mm
Contact Length - Post	0.175 in	0.112 - 0.175 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull
Insulation Color	Black	Black, Beige
Insulation Height	17.27 mm	7.9 - 17.27 mm
Insulation Height	0.68 in	0.311 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	64	64
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Overall Contact Length [x]	0.715 "	0.715 "
Overall Contact Length [x]	18.16 mm	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 3 Wall, Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit

N3764 Series

CONN HEADER VERT 64POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Style	Contact Shape	Insulation Color	Contact Type	Contact Finish - Post	Shrouding	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Material	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating [x]	Termination	Fastening Type	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]
3M N3764-2202RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 3 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-2302RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 3 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Long	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-5203RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	3.94 mm	0.155 "	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	8.64 mm	0.34 in	2.54 mm	0.1 in
3M N3764-5302RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Long	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	8.64 mm	0.34 in	2.54 mm	0.1 in
3M N3764-6002	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Beige	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Push-Pull	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-5202RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	8.64 mm	0.34 in	2.54 mm	0.1 in
3M N3764-1003RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 3 Wall			1.75 A	Copper Alloy	Through Hole, Right Angle	3.94 mm	0.155 "	6.1 mm	0.24 in	Solder	Push-Pull	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	7.9 mm	0.311 in	2.54 mm	0.1 in
3M N3764-630T02RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall			1.75 A	Copper Alloy	Through Hole	4.45 mm	0.175 in	6.1 mm	0.24 in	Press-Fit, Solder	Latch Lock/Eject Hooks, Long	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	300 µin	7.62 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in	0.715 "	18.16 mm
3M N3764-6502	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Beige	Male Pin	Tin-Lead	Shrouded - 4 Wall	0.652 in	16.56 mm	1.75 A	Copper Alloy	Through Hole	2.84 mm	0.112 in	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in
3M N3764-6203RB	0.1 in	2.54 mm	UL94 V-0	All	64	Board to Board, Cable	Square	Black	Male Pin	Tin	Shrouded - 4 Wall	0.695 in	17.65 mm	1.75 A	Copper Alloy	Through Hole	3.94 mm	0.155 "	6.1 mm	0.24 in	Solder	Latch Lock/Eject Hooks, Short	Gold	Header	30 Áin	0.76 Ám	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	200 µin	5.08 µm	2	17.27 mm	0.68 in	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.35
		10	$ 17.46

Description

General part information

N3764 Series

Connector Header Through Hole 64 position 0.100" (2.54mm)
