Specification	M85049/49-2-14W

Cable Exit Angle	180 °
Color	Olive
Features	Clamp Screws
For Use With/Related Products	II, MIL-DTL-27599, MIL-DTL-38999 Series I
Material	Aluminum Alloy
Plating	Cadmium Nickel
Shell Size - Insert	14
Shielding	Unshielded
Thread Pitch (TPI)	20 TPI
Thread Size (Class)	UNEF
Thread Size (Nominal)	0.8125 in
Type	Cable Clamp

M85049/49 Series

Part	Cable Opening (Max)	Cable Opening (Min)	Shielding	Features	Cable Exit Angle	Type	Shell Size - Insert	Material	Plating	Color	Diameter - Outside	For Use With/Related Products	Shell Size - Insert	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)
McGill Microwave Systems M85049/49-2-20W	0.698 in	0.343 in	Unshielded	Clamp Screws	180 °	Cable Clamp	20 21	Aluminum Alloy	Cadmium	Olive Drab	1.5 in	II MIL-DTL-38999 Series I
McGill Microwave Systems M85049/49-2-18W	0.634 in	0.325 in	Unshielded	Clamp Screws	180 °	Cable Clamp	18 19	Aluminum Alloy	Cadmium	Olive Drab	1.4 in	II MIL-DTL-38999 Series I
McGill Microwave Systems M85049/49-2-18W	0.634 in	0.325 in	Unshielded	Clamp Screws	180 °	Cable Clamp	18 19	Aluminum Alloy	Cadmium	Olive Drab	1.4 in

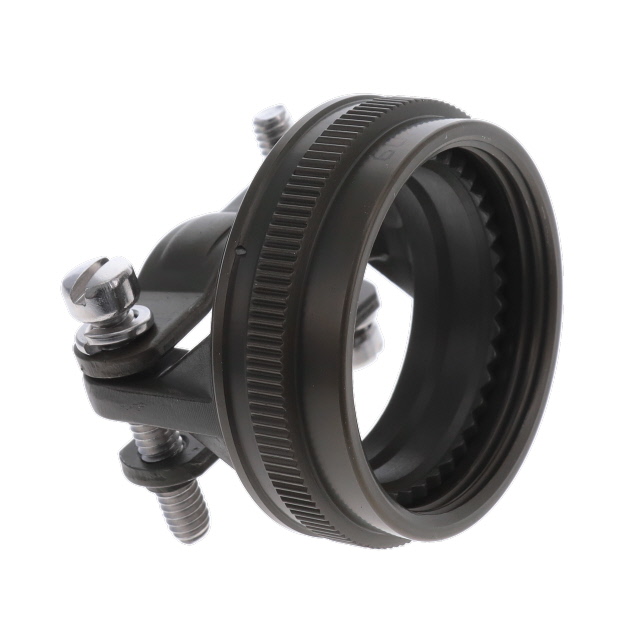

McGill Microwave Systems M85049/49-2-22W	0.823 in	0.381 in	Unshielded	Clamp Screws	180 °	Cable Clamp	22 23	Aluminum Alloy	Cadmium	Olive Drab	1.65 in	II MIL-DTL-38999 Series I
McGill Microwave Systems M85049/49-2S20N	0.698 in	0.343 in	Unshielded	Clamp Screws Self-Locking	180 °	Cable Clamp	20 21	Aluminum Alloy	Electroless Nickel	Silver	1.641 in
McGill Microwave Systems M85049/49-2S22W	0.96 in	0.64 in	Unshielded	Clamp Screws Self-Locking	180 °	Cable Clamp	22	Aluminum Alloy	Cadmium	Olive	1.76 in		22

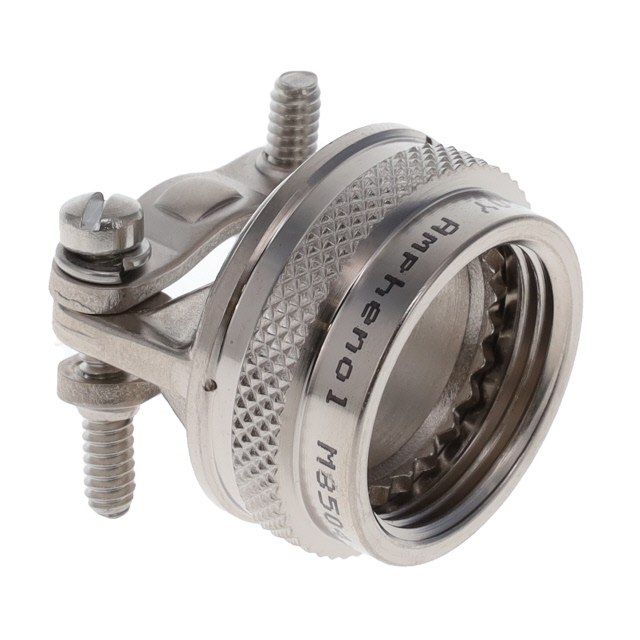

McGill Microwave Systems M85049/49-2-14N	0.457 in	0.26 in	Unshielded	Clamp Screws	180 °	Cable Clamp	14 15	Aluminum Alloy	Electroless Nickel	Silver	1.1 in	II MIL-DTL-38999 Series I
McGill Microwave Systems M85049/49-2-22W	0.823 in	0.381 in	Unshielded	Clamp Screws	180 °	Cable Clamp	22 23	Aluminum Alloy	Cadmium	Olive Drab	1.65 in
McGill Microwave Systems M85049/49-2-14W			Unshielded	Clamp Screws	180 °	Cable Clamp	14	Aluminum Alloy	Cadmium Nickel	Olive		II MIL-DTL-27599 MIL-DTL-38999 Series I		20 TPI	UNEF	0.8125 in
McGill Microwave Systems M85049/49-2-12N			Unshielded	Clamp Screws	180 °	Cable Clamp	12	Aluminum Alloy	Electroless Nickel	Silver		II MIL-DTL-27599 MIL-DTL-38999 Series I	12	24 TPI	UNEF	0.6875 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

M85049/49-2-14W | Datasheet
