CWSC11JDADS

Obsolete

NKK Switches

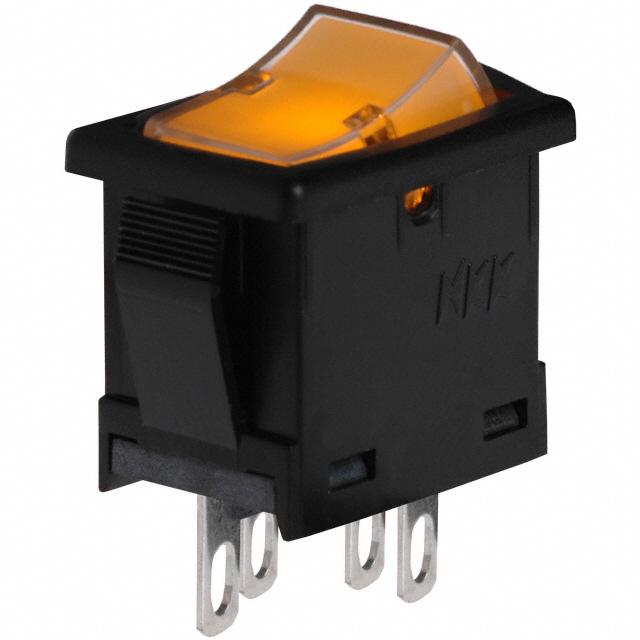

SWITCH ROCKER SPST 9A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPST 9A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CWSC11JDADS

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	UL
Circuit	SPST
Color - Actuator/Cap	Clear
Current Rating (Amps)	9 A
Electrical Life	10000 Cycles
Features	Audible Click
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V

Part	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Circuit	Approval Agency	Voltage Rating - AC	Illumination Voltage (Nominal)	Termination Style	Electrical Life	Switch Function	Current Rating (Amps)	Mechanical Life	Features	Actuator Type	Mounting Type	Illumination Type, Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Actuator Marking
NKK Switches CWSC11JDADS	Clear	12.9 mm	Rectangular	19.2 mm	SPST	UL	125 V	2 VDC	Quick Connect - 0.110" (2.8mm)	10000 Cycles	On-Off	9 A	30000 Steps	Audible Click	Concave (Curved) - Illuminated	Panel Mount Snap-In	Amber LED	-10 °C	50 °C	No Marking
