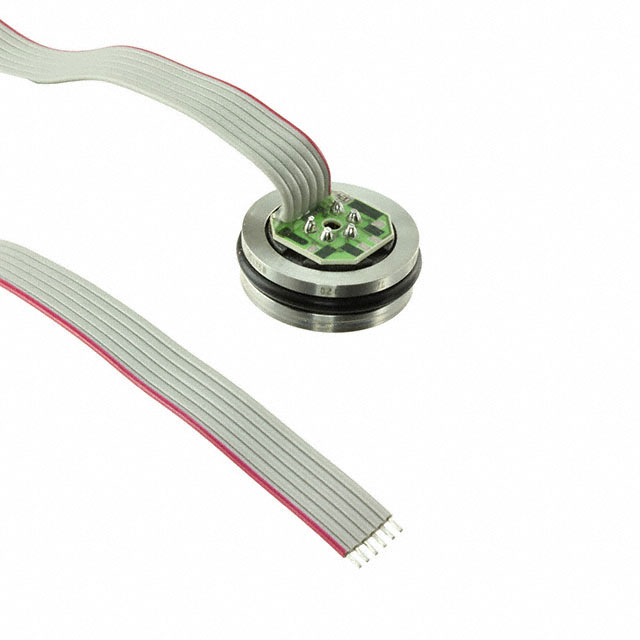

82-015G-R
ActiveTE Connectivity Measurement Specialties
SENSOR 15PSIG 0.1V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
82-015G-R
ActiveTE Connectivity Measurement Specialties
SENSOR 15PSIG 0.1V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 82-015G-R |
|---|---|
| Accuracy | 0.2 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 103.42 kPa |
| Maximum Pressure [Max] | 15 PSI |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Port Style | No Port |
| Pressure Type | Vented Gauge |
| Termination Style | Flex Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 60 | $ 70.96 | |
Description
General part information
82-015 Series
Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV
Documents
Technical documentation and resources
