Specification	2CMA167149R1000

Approval Agency	IEC
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating	16 A
Features	Cover
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Mounting Type	Wall Mount
Number of Positions	3
Termination	Screw
Voltage Rating (Option 1)	200 VAC
Voltage Rating (Option 2)	250 VAC

Tough & Safe Series

Part	Voltage Rating (Option 1)	Voltage Rating (Option 2)	Connector Type	Termination	Features	Current Rating	Mounting Type	Connector Style	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Approval Agency	Voltage Rating (Phase)	Voltage Rating (Maximum)	Voltage Rating (Minimum)
McGill Microwave Systems 2CMA167189R1000	200 VAC	415 V	Female Sockets Receptacle	Screw	Cover	32 A	Wall Mount	Pin and Sleeve (4P5W)	5	IP67 IP69K	Dust Tight Water Resistant Waterproof	IEC
McGill Microwave Systems 2CMA168115R1000	200 VAC	415 V	Male Pins Receptacle	Screw		63 A	Flange Panel Mount	Pin and Sleeve (4P5W)	5	IP67 IP69K	Dust Tight Water Resistant Waterproof	IEC
McGill Microwave Systems 2CMA100585R1000	380 V	415 V	Male Pins Plug	Screw		16 A	Free Hanging (In-Line)	Pin and Sleeve (3P4W)	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	CSA UL
McGill Microwave Systems 2CMA100600R1000	380 V	415 V	Female Sockets Receptacle	Screw	Cable Clamp Cover	16 A	Free Hanging (In-Line)	Pin and Sleeve (3P4W)	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	CSA UL
McGill Microwave Systems 2CMA100370R1000			Female Sockets Receptacle	Screw	Cover	60 A	Angled Flange Panel Mount	Pin and Sleeve (3P4W)	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	CSA UL	3 Phase	500 V	480 V

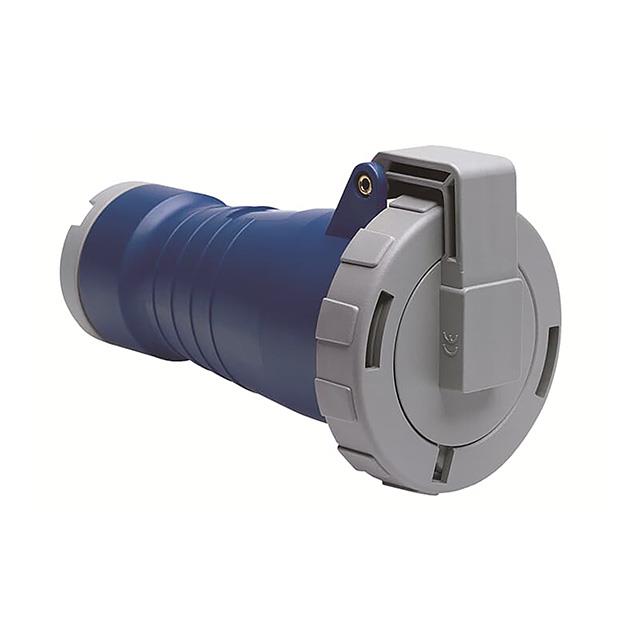

McGill Microwave Systems 2CMA100313R1000			Female Sockets Receptacle	Screw	Cover	20 A	Free Hanging (In-Line)	Pin and Sleeve (3P4W)	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	CSA UL	3 Phase	250 V	200 V
McGill Microwave Systems 2CMA166894R1000	380 V	415 V	Female Sockets Receptacle	Screw	Cover	63 A	Free Hanging (In-Line)	Pin and Sleeve (3P4W)	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	IEC
McGill Microwave Systems 2CMA167149R1000	200 VAC	250 VAC	Female Sockets Receptacle	Screw	Cover	16 A	Wall Mount	Pin and Sleeve (2P3W)	3	IP67 IP69K	Dust Tight Water Resistant Waterproof	IEC
McGill Microwave Systems 2CMA166738R1000	380 V	415 V	Male Pins Plug	Screw		32 A	Free Hanging (In-Line)	Pin and Sleeve (3P4W)	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	IEC
McGill Microwave Systems 2CMA100601R1000	200 VAC	415 V	Female Sockets Receptacle	Screw	Cable Clamp Cover	16 A	Free Hanging (In-Line)	Pin and Sleeve (4P5W)	5	IP67 IP69K	Dust Tight Water Resistant Waterproof	CSA UL
