1355206-1

Active

TE Connectivity AMP Connectors

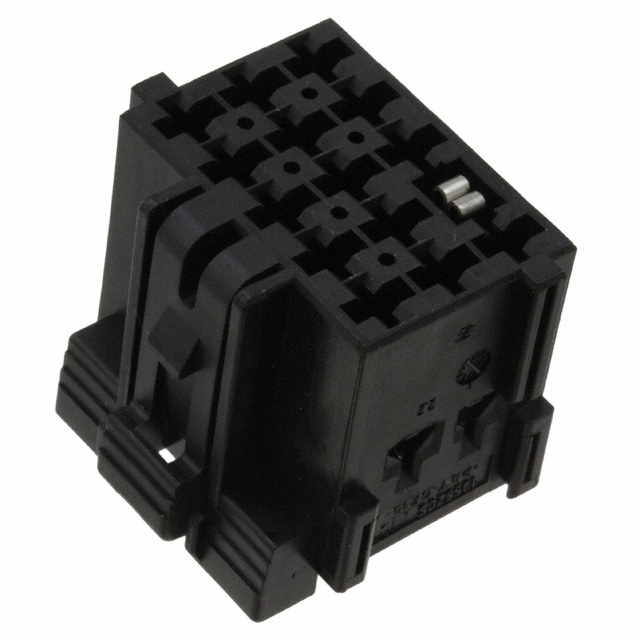

CONN RCPT HSG 14POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 14POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	1355206-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	3
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	5.51 mm
Row Spacing [x]	0.217 in

CONN RCPT HSG 14POS 5.00MM

Part	Color	Pitch [x]	Pitch [x]	Fastening Type	Row Spacing [x]	Row Spacing	Contact Type	Number of Positions	Insulation Material	Contact Termination	Note	Connector Type	Mounting Type	Number of Rows
TE Connectivity AMP Connectors 1355206-1	Black	5 mm	0.197 in	Latch Lock	0.217 in	5.51 mm	Female Socket	14	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Contacts Not Included	Receptacle	Free Hanging (In-Line)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
