PE25203A-V

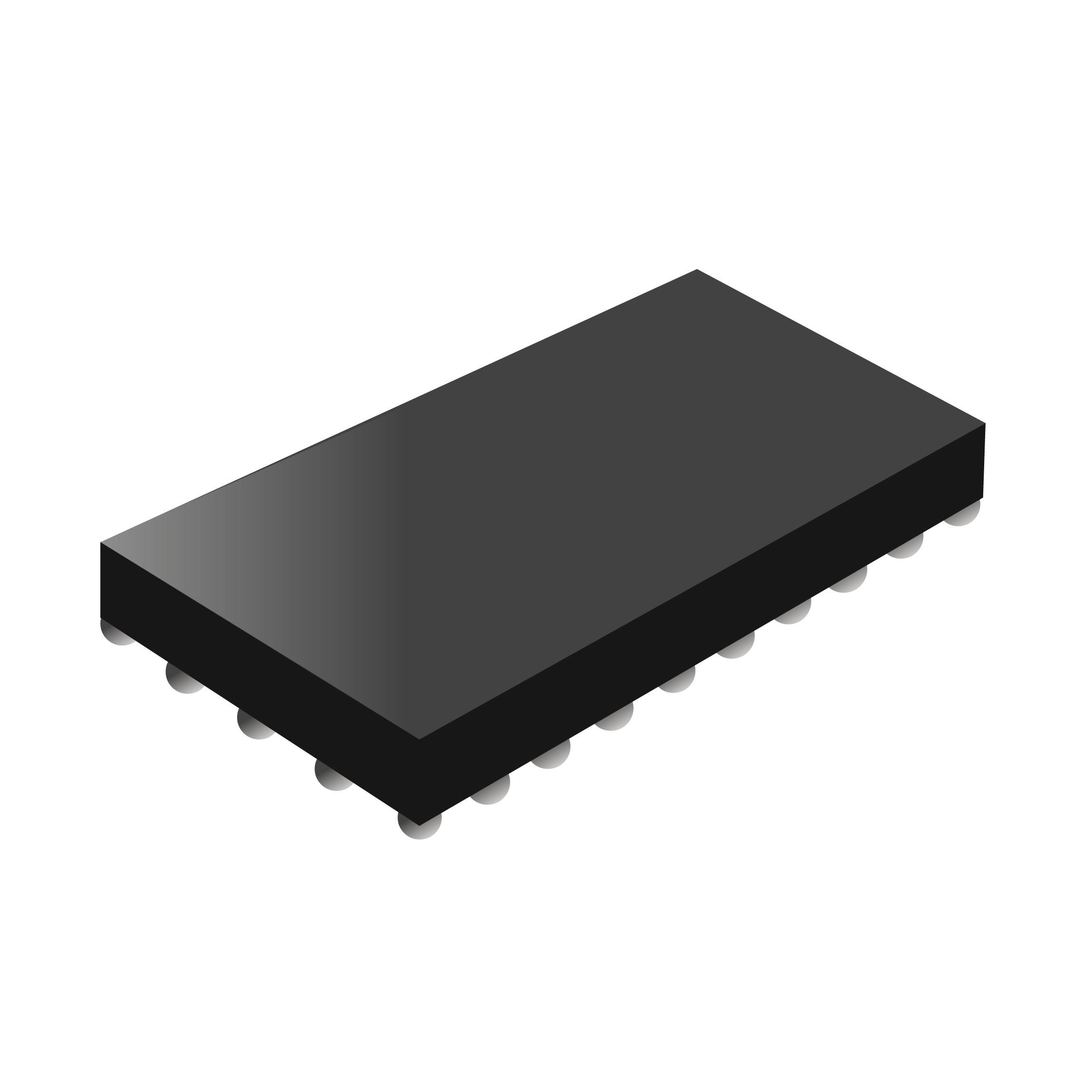

ActiveCHARGE PUMP CAPACITOR DIVIDER, 5.7 TO 15V IN, 4A OUT, WLCSP-21
Deep-Dive with AI
Search across all available documentation for this part.
PE25203A-V
ActiveCHARGE PUMP CAPACITOR DIVIDER, 5.7 TO 15V IN, 4A OUT, WLCSP-21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PE25203A-V | PE25203 Series |
|---|---|---|
| - | - | |
| Current - Output | 4 A | 4 A |
| Function | Ratiometric | Ratiometric |
| Number of Outputs | 1 | 1 |
| Output Configuration | Positive | Positive |
| Output Type | 1.81 mOhm | 1.81 mOhm |
| Synchronous Rectifier | False | False |
| Voltage - Input (Max) [Max] | 15 V | 15 V |
| Voltage - Input (Min) [Min] | 5.7 V | 5.7 V |
| Voltage - Output (Min/Fixed) | Vin/3, Vin/2 | Vin/3, Vin/2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
PE25203 Series
CHARGE PUMP CAPACITOR DIVIDER, 5.7 TO 15V IN, 4A OUT, WLCSP-21
| Part | Output Configuration | Voltage - Input (Max) [Max] | Function | Synchronous Rectifier | Current - Output | Number of Outputs | Voltage - Output (Min/Fixed) | Output Type | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. PE25203A-V | |||||||||
Murata Power Solutions Inc. PE25203A-V | Positive | 15 V | Ratiometric | 4 A | 1 | Vin/2, Vin/3 | 1.81 mOhm | 5.7 V |
Description
General part information
PE25203 Series
PE25203A-V is a high-efficiency front-end DC-DC converter. It is an ultra-high efficiency charge pump that is configurable to divide down an input voltage by two or three and deliver up to 4A at up to 99% peak efficiency. It supports an input voltage range of 5.7V to 10V in divide-by-2 mode and 8.4V to 15V in divide-by-3 mode. It is used in applications such as two-cell and three-cell lithium platforms, ultrabook and notebook computers, full-size tablet computers, ultra-thin form factor designs, 12VIN point-of-load designs in networking and telecommunications.
