C2895A.41.10

Active

Prysmian Group

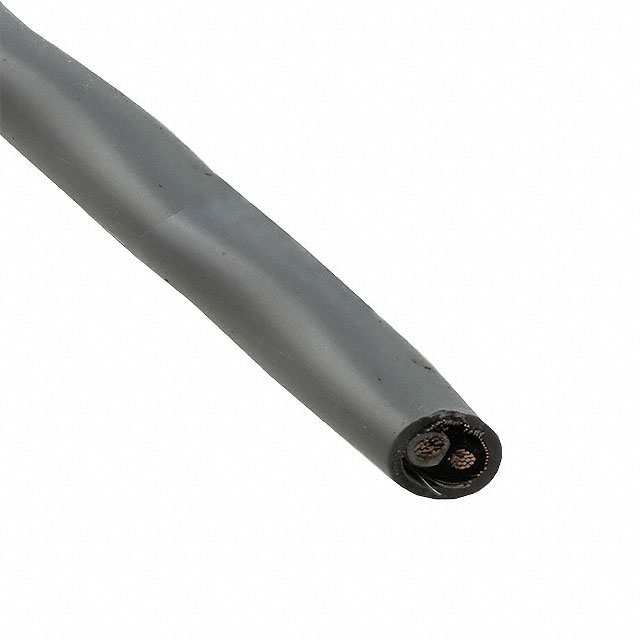

CABLE 2COND 16AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 16AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C2895A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Spiral
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Insulation	Jacket (Insulation) Material	Usage	Ratings	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Voltage	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Cable Type	Wire Gauge	Conductor Material	Shield Coverage
Prysmian Group C2895A.41.10	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication Control	ASTM B-33	Gray	2	6.73 mm	0.265 in	1000 ft	304.8 m	300 V	Spiral	19	0.0117 in	-20 C	80 C	Copper Tinned	Multi-Conductor	16 AWG	Copper Annealed Tinned	85 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.14

General part information

2 Conductor Multi-Conductor Cable Gray 16 AWG Spiral 1000.0' (304.8m)
