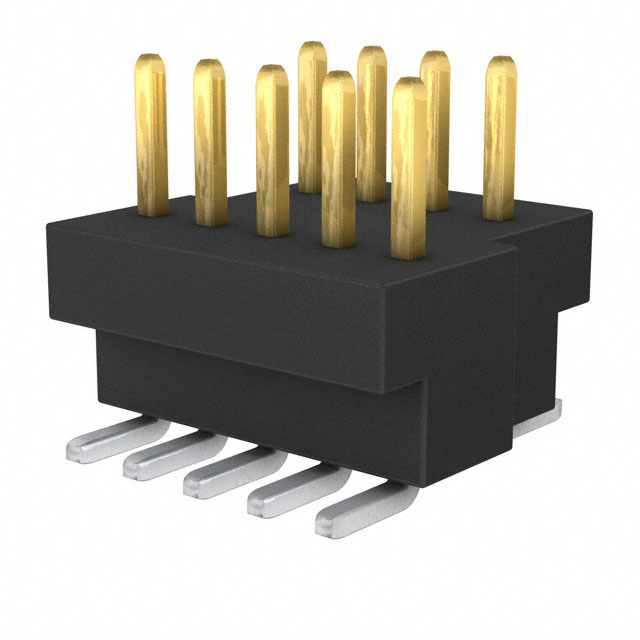

BKT-109-03-L-V-TR

Active

Samtec Inc.

CONN HEADER SMD 9POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BKT-109-03-L-V-TR

Active

Samtec Inc.

CONN HEADER SMD 9POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BKT-109-03-L-V-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BKT-109 Series

Part	Mounting Type	Contact Finish - Post	Insulation Color	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Fastening Type	Contact Type	Termination	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Insulation Material	Mated Stacking Heights [z]	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights
Samtec Inc. BKT-109-01-L-V	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze	1.63 mm	0.064 in	Liquid Crystal Polymer (LCP)	4.14 mm	Square	Header	10 çin	0.25 çm	-55 °C	125 °C
Samtec Inc. BKT-109-03-F-V	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze			Liquid Crystal Polymer (LCP)		Square	Header	3 µin	0.076 µm	-55 °C	125 °C	0.098 in	2.5 mm	5 mm
Samtec Inc. BKT-109-04-F-V	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze	3.47 mm	0.137 in	Liquid Crystal Polymer (LCP)		Square	Header	3 µin	0.076 µm	-55 °C	125 °C			6 mm
Samtec Inc. BKT-109-02-L-V	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze	1.63 mm	0.064 in	Liquid Crystal Polymer (LCP)		Square	Header	10 çin	0.25 çm	-55 °C	125 °C
Samtec Inc. BKT-109-05-L-V-TR	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze	4.5 mm	0.177 in	Liquid Crystal Polymer (LCP)		Square	Header	10 çin	0.25 çm	-55 °C	125 °C			7 mm
Samtec Inc. BKT-109-01-F-V-TR	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze	1.63 mm	0.064 in	Liquid Crystal Polymer (LCP)	4.14 mm	Square	Header	3 µin	0.076 µm	-55 °C	125 °C
Samtec Inc. BKT-109-01-L-V-TR	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze	1.63 mm	0.064 in	Liquid Crystal Polymer (LCP)	4.14 mm	Square	Header	10 çin	0.25 çm	-55 °C	125 °C
Samtec Inc. BKT-109-03-L-V-TR	Surface Mount	Tin	Black	Unshrouded	2.54 mm	0.1 in	Gold	0.065 in	1.65 mm	2	Push-Pull	Male Pin	Solder	UL94 V-0	All	2.8 A per Contact	9	0.039 in	1 mm	Phosphor Bronze			Liquid Crystal Polymer (LCP)		Square	Header	10 çin	0.25 çm	-55 °C	125 °C	0.098 in	2.5 mm	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	700	$ 2.37

Description

General part information

BKT-109 Series

Connector Header Surface Mount 9 position 0.039" (1.00mm)
