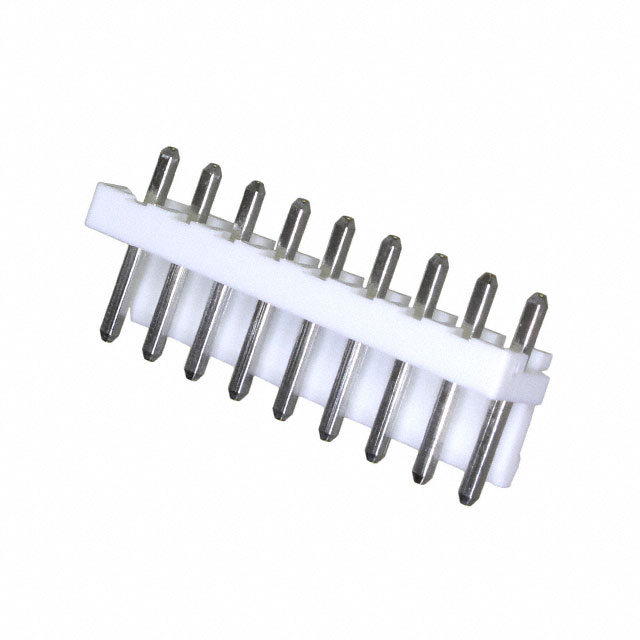

B9P-VH-B
ActiveJST Sales America Inc.
CONN HEADER VERT 9POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B9P-VH-B
ActiveJST Sales America Inc.
CONN HEADER VERT 9POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B9P-VH-B |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.37 in |
| Insulation Height | 9.4 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 0.575 in |
| Overall Contact Length | 14.6 mm |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
B9P-VH Series
| Part | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Mated Stacking Heights | Contact Length - Post | Contact Length - Post | Fastening Type | Contact Length - Mating | Contact Length - Mating | Termination | Voltage Rating | Insulation Material | Contact Finish - Post | Material Flammability Rating | Shrouding | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Connector Type | Number of Rows | Contact Type | Style | Contact Material | Contact Shape | Insulation Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | All | 0.575 in | 14.6 mm | 16.5 mm | 0.146 in | 3.7 mm | Locking Ramp | 7.7 mm | 0.303 in | Solder | 250 VDC | Polyamide (PA66) Nylon 6/6 | Tin | UL94 V-0 | Shrouded - 1 Wall | 0.37 in | 9.4 mm | 9 | 0.156 in | 3.96 mm | -25 °C | 85 °C | Through Hole | 10 A | Header | 1 | Male Pin | Board to Cable/Wire | Brass | Square | Natural | |
JST Sales America Inc. | All | 0.146 in | 3.7 mm | Locking Ramp | Solder | 250 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Tin | UL94 V-0 | Shrouded - 4 Wall | 0.433 in | 11 mm | 9 | 0.156 in | 3.96 mm | -25 °C | 85 °C | Through Hole | 10 A | Header | 1 | Male Pin | Board to Cable/Wire | Copper Alloy | Square | Natural | Board Guide | |||||
JST Sales America Inc. | All | 0.575 in | 14.6 mm | 0.146 in | 3.7 mm | Locking Ramp | 7.7 mm | 0.303 in | Solder | 250 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Tin | UL94 V-0 | Shrouded - 1 Wall | 0.37 in | 9.4 mm | 9 | 0.156 in | 3.96 mm | -25 °C | 85 °C | Through Hole | 10 A | Header | 1 | Male Pin | Board to Cable/Wire | Brass | Square | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.70 | |
| 10 | $ 0.61 | |||
| 200 | $ 0.50 | |||
| 1000 | $ 0.36 | |||
| 5000 | $ 0.32 | |||
| 10000 | $ 0.29 | |||
Description
General part information
B9P-VH Series
Connector Header Through Hole 9 position 0.156" (3.96mm)
