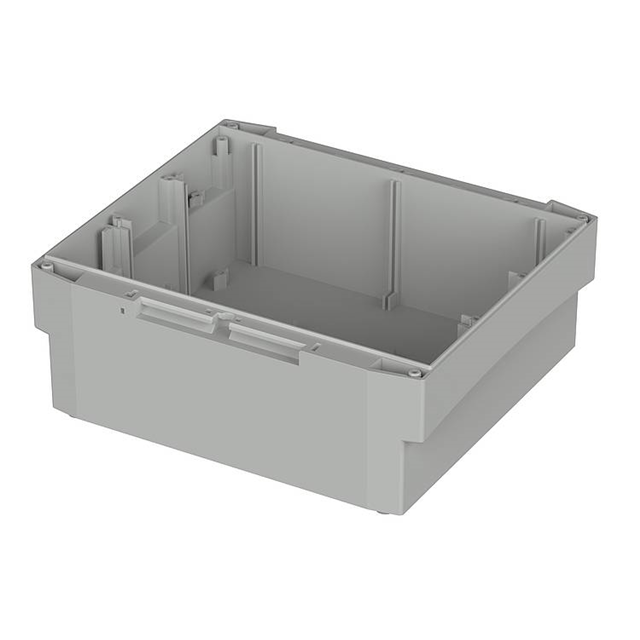

BCD 200 UT-7035

Active

Bopla Enclosures

BOX ABS GRAY 8.86"L X 7.8"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BCD 200 UT-7035

Active

Bopla Enclosures

BOX ABS GRAY 8.86"L X 7.8"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.41

Description

General part information

BCD 200 Series

Box Plastic, ABS Gray Open End(s) 8.858" L x 7.795" W (225.00mm x 198.00mm) X 3.150" (80.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BCD 200 UT-7035	BCD 200 Series

Area (L x W)	69 in²	69 in²
Area (L x W)	445 cm²	445 cm²
Color	Gray	Gray Frame, Clear, Gray
Container Type	Box	Box
Design	Open End(s)	Open End(s)
Features	PCB Supports, Card Guides	Hinged, PCB Supports, Card Guides
For Use With/Related Products	-	BOCARD 200 System
Height	-	1.575 in
Height	-	40 mm
Height [diameter]	80 mm	80 mm
Height [diameter]	3.15 in	3.15 in
Material	Plastic, ABS	Plastic, Polycarbonate, Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Size / Dimension	-	229 mm
Size / Dimension	-	1.407 - 20 "
Size / Dimension	-	204 mm
Size / Dimension	-	36 mm
Size / Dimension	-	0.748 - 0.787 "
Size / Dimension [x]	8.858 in	8.583 - 9.016 in
Size / Dimension [x]	225 mm	9.016 - 229 "
Size / Dimension [y]	7.795 in	2.126 - 7.992 in
Size / Dimension [y]	198 mm	8.031 - 203 "
Thickness	3 mm	3 mm
Thickness	0.118 in	0.118 in
Type	-	Cover, Lid, Frame

BCD 200 Series

HINGED LID 204X229X36MM

Part	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	For Use With/Related Products	Color	Type	Material	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Thickness	Thickness	Area (L x W)	Area (L x W)	Design	Material Flammability Rating	Height [diameter]	Height [diameter]	Container Type
Bopla Enclosures BCD 200 OT-G-7024	Hinged	229 mm	1.407 "	8.031 "	204 mm	36 mm	9.016 "	BOCARD 200 System	Clear, Gray Frame	Cover, Lid	Plastic, Polycarbonate
Bopla Enclosures BCD 200 FO-K-7024			19 mm	203 mm			229 mm	BOCARD 200 System	Gray	Frame	Plastic, Polycarbonate	9.016 in	0.748 "	7.992 in
Bopla Enclosures BCD 200 FO-7035			19 mm	203 mm			229 mm	BOCARD 200 System	Gray	Frame	Plastic, Polycarbonate	9.016 in	0.748 "	7.992 in
Bopla Enclosures BCD 200 FO-7024			19 mm	203 mm			229 mm	BOCARD 200 System	Gray	Frame	Plastic, Polycarbonate	9.016 in	0.748 "	7.992 in
Bopla Enclosures BCD 200 KRD-7024			20 mm	54 mm			218 mm	BOCARD 200 System	Gray	Cover, Lid	Plastic, Polycarbonate	8.583 in	0.787 in	2.126 in
Bopla Enclosures BCD 200 OT-F-7035			19 mm	203 mm			229 mm	BOCARD 200 System	Gray	Cover, Lid	Plastic, Polycarbonate	9.016 in	0.748 "	7.992 in
Bopla Enclosures BCD 200 UT-7035	Card Guides, PCB Supports			198 mm			225 mm		Gray		Plastic, ABS	8.858 in		7.795 in	3 mm	0.118 in	69 in²	445 cm²	Open End(s)	UL94 HB	80 mm	3.15 in	Box
Bopla Enclosures BCD 200 OT-G-7035	Hinged	229 mm	1.407 "	8.031 "	204 mm	36 mm	9.016 "	BOCARD 200 System	Clear, Gray Frame	Cover, Lid	Plastic, Polycarbonate
Bopla Enclosures BCD 200 OT-F-7024			19 mm	203 mm			229 mm	BOCARD 200 System	Gray	Cover, Lid	Plastic, Polycarbonate	9.016 in	0.748 "	7.992 in
Bopla Enclosures BCD 200 KRD-7035			20 mm	54 mm			218 mm	BOCARD 200 System	Gray	Cover, Lid	Plastic, Polycarbonate	8.583 in	0.787 in	2.126 in
