6300-W5-12

Obsolete

3M (TC)

CONN FIBER SC PLUG SMPLX 125UM

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN FIBER SC PLUG SMPLX 125UM

Technical Specifications

Parameters and characteristics for this part

Specification	6300-W5-12

Attenuation - Typ	-2 dB
Body Material	Engineered Resin
Boot Color	White
Cable Diameter [diameter]	0.9 mm
Connector Style	SC
Connector Type	Plug
Fastening Type	Snap-In
Features	Strain Relief, Hot Melt, Dust Cap
Ferrule Material	Zirconia
Housing Color	Black
Housing Material	Engineered Resin
Mating Cycles	500
Mode	Multimode
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Reflection	-25 dB
Simplex/Duplex	Simplex

Part	Attenuation - Typ	Connector Style	Fastening Type	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mode	Cable Diameter [diameter]	Simplex/Duplex	Housing Material	Ferrule Material	Housing Color	Mating Cycles	Mounting Type	Boot Color	Reflection	Body Material
3M (TC) 6300-W5-12	-2 dB	SC	Snap-In	Dust Cap Hot Melt Strain Relief	Plug	-10 °C	60 °C	Multimode	0.9 mm	Simplex	Engineered Resin	Zirconia	Black	500	Free Hanging (In-Line)	White	-25 dB	Engineered Resin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

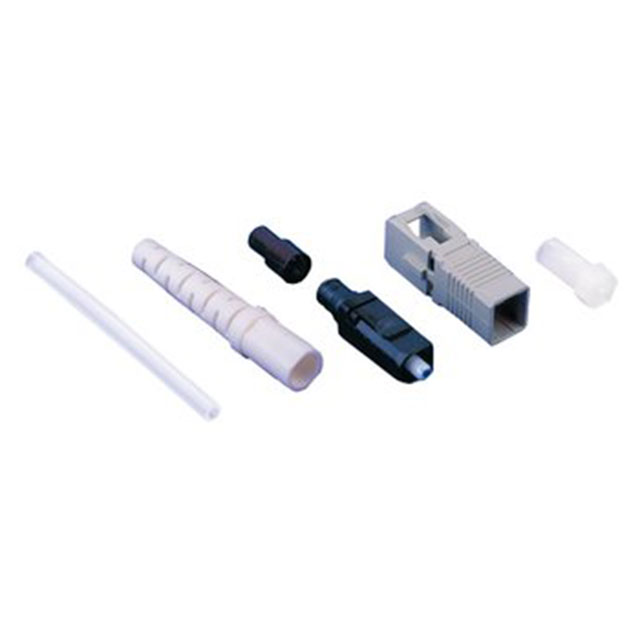

Fiber Optic Plug Connector SC Simplex 125µm Black
