1241.2878.5

Active

SCHURTER Inc.

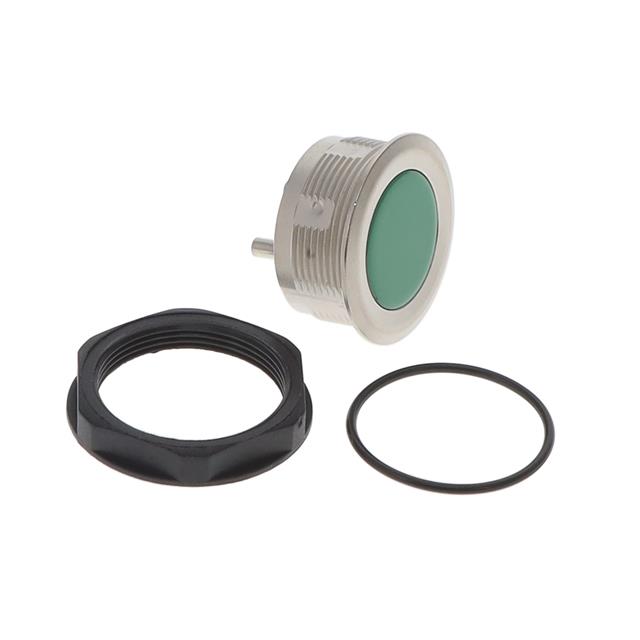

SWITCH PUSH SPST-NO 125MA 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2878.5

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	125 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - DC	48 V

SWITCH PUSH SPST-NO 125MA 48V

Part	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - DC	Features	Circuit	Mechanical Life	Ingress Protection	Electrical Life	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Type	Termination Style	Current Rating (Amps)	Mounting Type	Actuator Marking
SCHURTER Inc. 1241.2878.5	Button, Flush, Round	19 mm	Off-Mom	48 V	Tactile Feedback	SPST-NO	1000000 Cycles	IP65 - Dust Tight, Water Resistant	1000000 Cycles	Green	-25 °C	60 °C	Anti-Vandal	Solder Lug	125 mA	Panel Mount, Front	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.23

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
