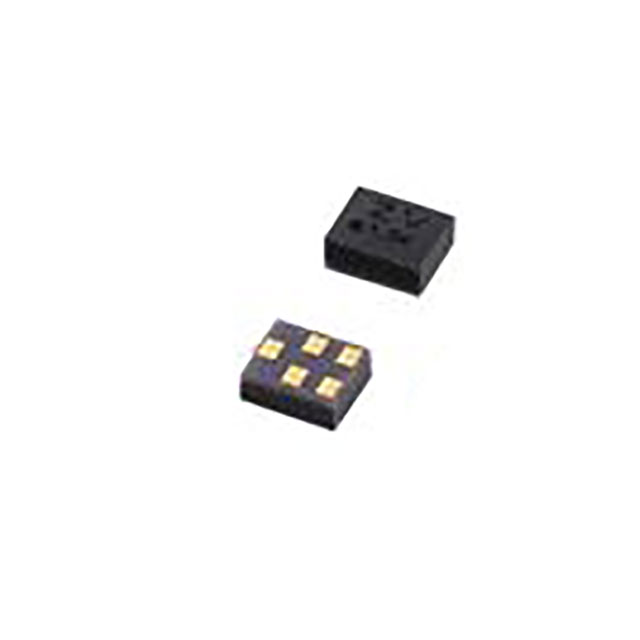

SF1220G
ActiveRFMi
FILTER, SAW, 2326 MHZ, 5SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF1220G |
|---|---|
| Applications | General Purpose |
| Bandwidth | 14 MHz |
| Frequency - Center | 2.326 GHz |
| Height (Max) [Max] | 1.08 mm |
| Height (Max) [Max] | 0.043 in |
| Insertion Loss | 2.7 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 1.19 | |
| Tape & Reel (TR) | 2000 | $ 0.66 | ||
| 10000 | $ 0.60 | |||
Description
General part information
SF1220 Series
2.326GHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 2.7dB 14MHz Bandwidth 5-SMD, No Lead
