807-042-447-101

Active

EDAC Inc.

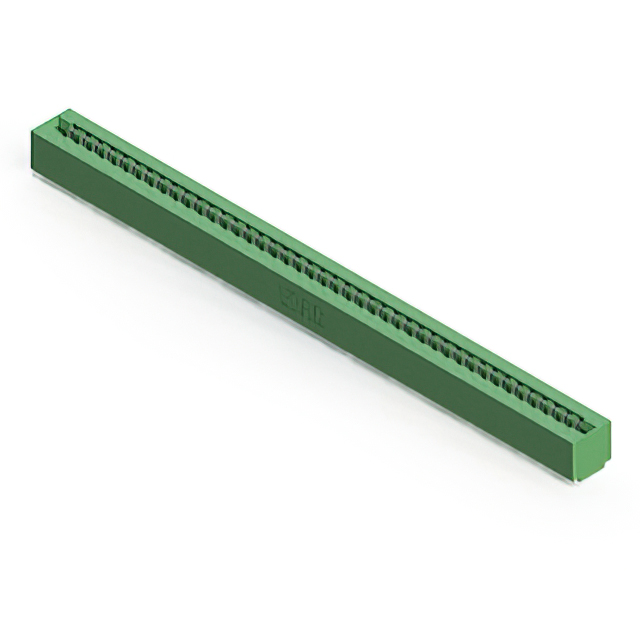

CARD EDGE CONNECTOR, 44 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, LOCKING, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-042-447-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 44 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, LOCKING, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-042-447-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	42
Number of Positions/Bay/Row [custom]	42
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

807-042 Series

...

Part	Mounting Type	Termination Rows	Color	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Positions	Contact Material	Contact Type	Card Type	Material - Insulation	Gender	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Features	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-042-558-101	Through Hole Right Angle	1	Green	125 °C	-40 °C	Single	42	Copper Alloy	Semi Bellows	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Gold	1	10 Áin	0.25 Ám	42	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder
EDAC Inc. 807-042-555-201	Board Edge Straddle Mount	2	Green	125 °C	-40 °C	Dual	42	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Gold	2	10 Áin	0.25 Ám		1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Card Extender
EDAC Inc. 807-042-447-101	Through Hole	1	Green	125 °C	-40 °C	Single	42	Copper Alloy	Semi Bellows	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Tin	1			42	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap
EDAC Inc. 807-042-459-112	Through Hole Right Angle	1	Green	125 °C	-40 °C	Single	42	Copper Alloy	Semi Bellows	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Tin	1			42	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder		Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 807-042-556-208	Board Edge Straddle Mount	2	Green	125 °C	-40 °C	Dual	42	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Gold	2	10 Áin	0.25 Ám		1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Card Extender	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 807-042-420-207	Through Hole	2	Green	125 °C	-40 °C	Dual	42	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Tin	2				1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 807-042-555-212	Board Edge Straddle Mount	2	Green	125 °C	-40 °C	Dual	42	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Gold	2	10 Áin	0.25 Ám		1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Card Extender	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 807-042-425-108	Through Hole	1	Green	125 °C	-40 °C	Single	42	Copper Alloy	Semi Bellows	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Tin	1			42	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 807-042-501-107	Through Hole	1	Green	125 °C	-40 °C	Dual	84	Copper Alloy	Semi Bellows	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Gold	2	10 Áin	0.25 Ám	42	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 807-042-559-102	Through Hole Right Angle	1	Green	125 °C	-40 °C	Single	42	Copper Alloy	Semi Bellows	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Gold	1	10 Áin	0.25 Ám	42	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder		Flush Mount Top Opening Unthreaded			3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 140.67

Description

General part information

807-042 Series

42 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
