1241.6664.1124000
ActiveSCHURTER Inc.

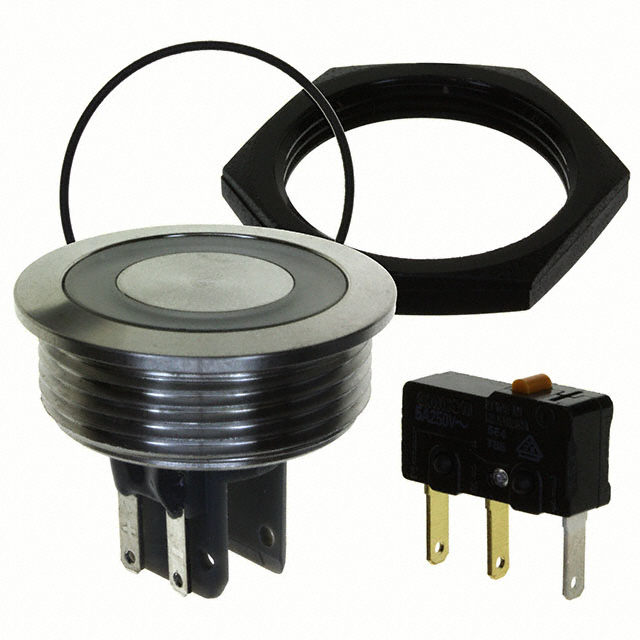

SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6664.1124000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6664.1124000 | 1241.6664 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 - 100 mA |
| Electrical Life | 200000 Cycles | 200000 Cycles |
| Illumination Type, Color | LED, Blue | Red, LED, Green, Blue |
| Illumination Voltage (Nominal) | 24 V | 24 V |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 30.1 mm | 30.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | - | 30 V |
1241.6664 Series
SWITCH PUSHBUTTON SPDT 100MA 30V
| Part | Switch Function | Termination Style | Illumination Type, Color | Mounting Type | Actuator Marking | Actuator Type | Electrical Life | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating - DC | Color - Actuator/Cap | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Circuit | Type | Mechanical Life | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6664.1111000 | On-Mom | Quick Connect - 0.110" (2.8mm) | LED, Red | Panel Mount, Front | No Marking | Button, Flush, Round | 200000 Cycles | IP40 | -25 °C | 85 °C | 100 mA | 30 V | Silver | 24 V | 30.1 mm | SPDT | Anti-Vandal, Illuminated | 1500000 Cycles | |
SCHURTER Inc. 1241.6664.1112000 | On-Mom | Quick Connect - 0.110" (2.8mm) | Green, LED | Panel Mount, Front | No Marking | Button, Flush, Round | 200000 Cycles | IP40 | -25 °C | 85 °C | 100 mA | 30 V | Silver | 24 V | 30.1 mm | SPDT | Anti-Vandal, Illuminated | 1500000 Cycles | |
SCHURTER Inc. 1241.6664.1122000 | On-Mom | Quick Connect - 0.110" (2.8mm) | Green, LED | Panel Mount, Front | No Marking | Button, Flush, Round | 200000 Cycles | IP40 | -25 °C | 85 °C | 5 A | Silver | 24 V | 30.1 mm | SPDT | Anti-Vandal, Illuminated | 1500000 Cycles | 125 V | |
SCHURTER Inc. 1241.6664.1124000 | On-Mom | Quick Connect - 0.110" (2.8mm) | Blue, LED | Panel Mount, Front | No Marking | Button, Flush, Round | 200000 Cycles | IP40 | -25 °C | 85 °C | 5 A | Silver | 24 V | 30.1 mm | SPDT | Anti-Vandal, Illuminated | 1500000 Cycles | 125 V | |
SCHURTER Inc. 1241.6664.1121000 | On-Mom | Quick Connect - 0.110" (2.8mm) | LED, Red | Panel Mount, Front | No Marking | Button, Flush, Round | 200000 Cycles | IP40 | -25 °C | 85 °C | 5 A | Silver | 24 V | 30.1 mm | SPDT | Anti-Vandal, Illuminated | 1500000 Cycles | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 53.01 | |
Description
General part information
1241.6664 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
