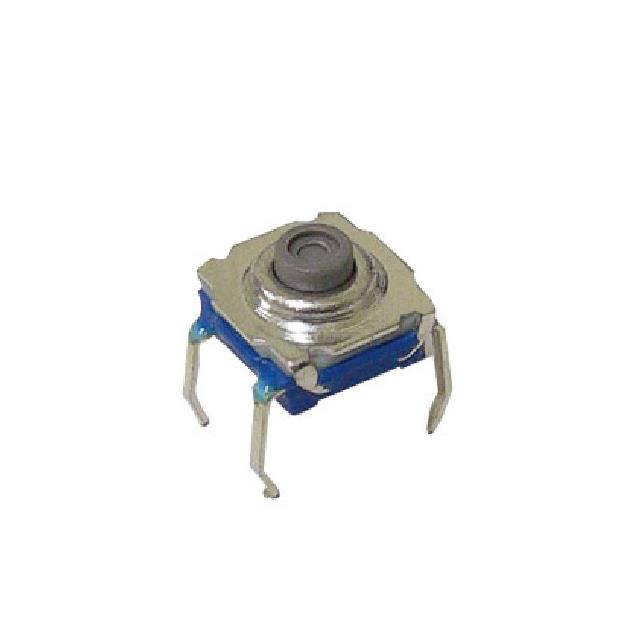

225CTVBBT

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	225CTVBBT	225CTV Series

Actuator Height off PCB, Vertical [z]	7 mm	4.7 - 10 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	300 gf	130 - 300 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	7.2 mm	7.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.5 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Switch Function	Ingress Protection	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Mechanical Life	Outline [x]	Outline [y]	Circuit	Switch Travel	Mounting Type	Illumination	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Actuator Type
CTS Electrocomponents 225CTVABT	PC Pin	Off-Mom	IP67 - Dust Tight, Waterproof	Top Actuated	4.7 mm	100000 Cycles	7.2 mm	7.2 mm	SPST-NO	0.5 mm	Through Hole	Non-Illuminated	0.05 A, 12 VDC	-20 C	70 °C	300 gf	Standard
CTS Electrocomponents 225CTVCBT	PC Pin	Off-Mom	IP67 - Dust Tight, Waterproof	Top Actuated	10 mm	100000 Cycles	7.2 mm	7.2 mm	SPST-NO	0.5 mm	Through Hole	Non-Illuminated	0.05 A, 12 VDC	-20 C	70 °C	300 gf	Standard
CTS Electrocomponents 225CTVAAT	PC Pin	Off-Mom	IP67 - Dust Tight, Waterproof	Top Actuated	4.7 mm	100000 Cycles	7.2 mm	7.2 mm	SPST-NO	0.5 mm	Through Hole	Non-Illuminated	0.05 A, 12 VDC	-20 C	70 °C	130 gf	Standard
CTS Electrocomponents 225CTVBBT	PC Pin	Off-Mom	IP67 - Dust Tight, Waterproof	Top Actuated	7 mm	100000 Cycles	7.2 mm	7.2 mm	SPST-NO	0.5 mm	Through Hole	Non-Illuminated	0.05 A, 12 VDC	-20 C	70 °C	300 gf	Standard
