WAVE-425-117

Active

Wakefield-Vette

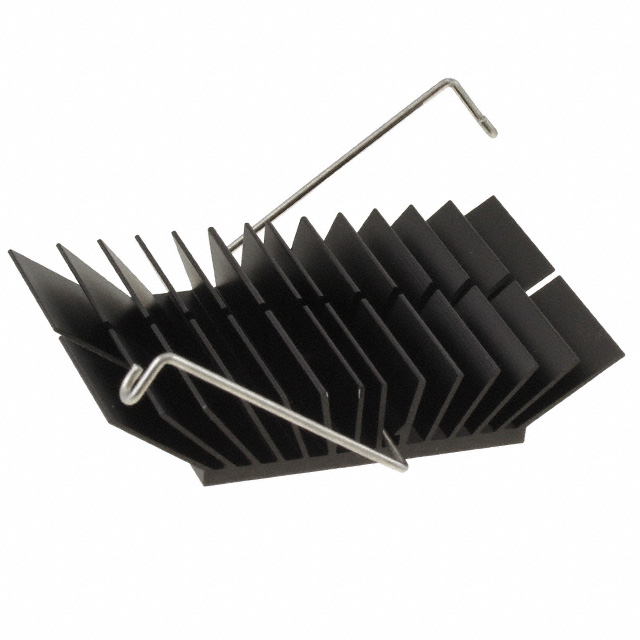

ANCHOR HEATSINK 42.5X42.5X11.7MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ANCHOR HEATSINK 42.5X42.5X11.7MM

Technical Specifications

Parameters and characteristics for this part

Specification	WAVE-425-117

Attachment Method	Clip
Fin Height [z]	11.7 mm
Fin Height [z]	0.461 in
Length	42.5 mm
Length	1.673 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	3.4 °C/W
Type	Board Level
Width [x]	1.673 "
Width [x]	42.5 mm

ANCHOR HEATSINK 42.5X42.5X11.7MM

Part	Width [x]	Width [x]	Type	Attachment Method	Package Cooled	Fin Height [z]	Fin Height [z]	Material Finish	Material	Length	Length	Shape	Thermal Resistance @ Forced Air Flow
Wakefield-Vette WAVE-425-117	1.673 "	42.5 mm	Board Level	Clip	BGA	11.7 mm	0.461 in	Black Anodized	Aluminum Alloy	42.5 mm	1.673 in	Angled Fins, Square	3.4 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Alloy Board Level
