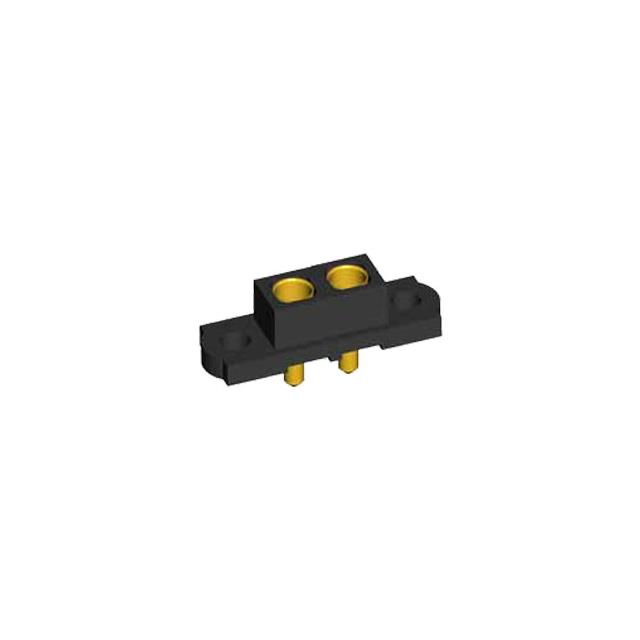

M80-400000000-02-305-00-000

Active

CONN RCPT 2POS CRIMP GOLD

Active

CONN RCPT 2POS CRIMP GOLD

Description

General part information

2 Position Rectangular Receptacle Connector Crimp Gold

Parameters and characteristics for this part

Specification	M80-400000000-02-305-00-000

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Type	Coaxial, Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key, Mating Flange
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Pitch	0.157 in
Wire Type	Coaxial

Part	Mounting Type	Contact Type	Number of Rows	Features	Cable Termination	Pitch	Fastening Type	Wire Type	Number of Positions	Connector Type	Color	Contact Finish
Harwin Inc. M80-400000000-04-305-00-000	Free Hanging (In-Line)	Coaxial Female Socket	1	Mating Flange Polarizing Key	Crimp	0.157 in	Push-Pull	Coaxial	4	Receptacle	Black	Gold
Harwin Inc. M80-400000000-08-305-00-000	Free Hanging (In-Line)	Coaxial Female Socket	1	Mating Flange Polarizing Key	Crimp	0.157 in	Push-Pull	Coaxial	8	Receptacle	Black	Gold
Harwin Inc. M80-400000000-12-305-00-000	Free Hanging (In-Line)	Coaxial Female Socket	1	Mating Flange Polarizing Key	Crimp	0.157 in	Push-Pull	Coaxial	12	Receptacle	Black	Gold
Harwin Inc. M80-400000000-02-305-00-000	Free Hanging (In-Line)	Coaxial Female Socket	1	Mating Flange Polarizing Key	Crimp	0.157 in	Push-Pull	Coaxial	2	Receptacle	Black	Gold
