CS42L51-DNZ
ActiveCirrus Logic Inc.

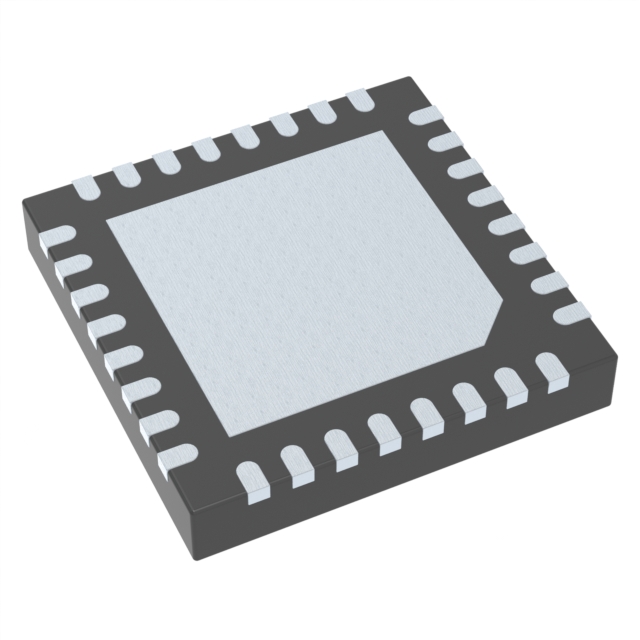

IC CODEC STEREO W/HDPN AMP 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
CS42L51-DNZ
ActiveCirrus Logic Inc.
IC CODEC STEREO W/HDPN AMP 32QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CS42L51-DNZ | CS42L51 Series |
|---|---|---|
| Contents | - | Board(s) |
| Data Interface | Serial | Serial, PCM Audio Interface |
| Dynamic Range, ADCs / DACs (db) Typ [custom] | 98 db | 98 db |
| Dynamic Range, ADCs / DACs (db) Typ [custom] | 98 db | 98 db |
| Embedded | - | Yes, Other |
| Function | - | CODEC |
| Mounting Type | Surface Mount | Surface Mount |
| Number of ADCs / DACs [custom] | 2 DAC | 2 DAC |
| Number of ADCs / DACs [custom] | 2 ADC | 2 ADC |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - -10 °C |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad, 32-QFP |
| Primary Attributes | - | Stereo, Digital Audio Transmitter, Receiver |
| Resolution (Bits) | 24 b | 24 b |
| Secondary Attributes | - | Graphical User Interface (GUI) |
| Sigma Delta | True | True |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5), 32-QFN-EP (5x5) |
| Type | Stereo Audio | Stereo Audio, Audio |
| Utilized IC / Part | - | CS8415, CS42L51, CS8406 |
| Voltage - Supply, Analog | 1.8 V, 2.5 V | 1.8 - 2.5 V |
| Voltage - Supply, Digital | 2.5 V, 1.8 V | 1.8 - 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 360 | $ 7.02 | |
CS42L51 Series
IC CODEC STEREO W/HDPN AMP 32QFN
| Part | Voltage - Supply, Digital | Number of ADCs / DACs [custom] | Number of ADCs / DACs [custom] | Resolution (Bits) | Data Interface | Mounting Type | Dynamic Range, ADCs / DACs (db) Typ [custom] | Dynamic Range, ADCs / DACs (db) Typ [custom] | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Analog | Type | Package / Case | Sigma Delta | Function | Secondary Attributes | Primary Attributes | Utilized IC / Part | Contents | Supplied Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cirrus Logic Inc. CS42L51-DNZ | 1.8 V, 2.5 V | 2 DAC | 2 ADC | 24 b | Serial | Surface Mount | 98 db | 98 db | 32-QFN (5x5) | -40 °C | 85 °C | 1.8 V, 2.5 V | Stereo Audio | 32-VFQFN Exposed Pad | ||||||||
Cirrus Logic Inc. CDB42L51 | Audio | CODEC | Graphical User Interface (GUI) | Digital Audio Transmitter, Receiver, Stereo | CS42L51, CS8406, CS8415 | Board(s) | Board(s) | Yes, Other | ||||||||||||||
Cirrus Logic Inc. CS42L51-DNZR | 1.8 V, 2.5 V | 2 DAC | 2 ADC | 24 b | Serial | Surface Mount | 98 db | 98 db | 32-QFN (5x5) | -40 °C | 85 °C | 1.8 V, 2.5 V | Stereo Audio | 32-VFQFN Exposed Pad | ||||||||
Cirrus Logic Inc. CS42L51-CNZR | 1.8 V, 2.5 V | 2 DAC | 2 ADC | 24 b | PCM Audio Interface | Surface Mount | 98 db | 98 db | 32-QFN-EP (5x5) | -10 °C | 70 ░C | 1.8 V, 2.5 V | Stereo Audio | 32-QFP | ||||||||
Cirrus Logic Inc. CS42L51-CNZ | 1.8 V, 2.5 V | 2 DAC | 2 ADC | 24 b | PCM Audio Interface | Surface Mount | 98 db | 98 db | 32-QFN-EP (5x5) | -10 °C | 70 ░C | 1.8 V, 2.5 V | Stereo Audio | 32-QFP | ||||||||
Cirrus Logic Inc. CRD42L51 | Audio | CODEC | CS42L51 | Board(s) |
Description
General part information
CS42L51 Series
Stereo Audio Interface 24 b Serial 32-QFN (5x5)
