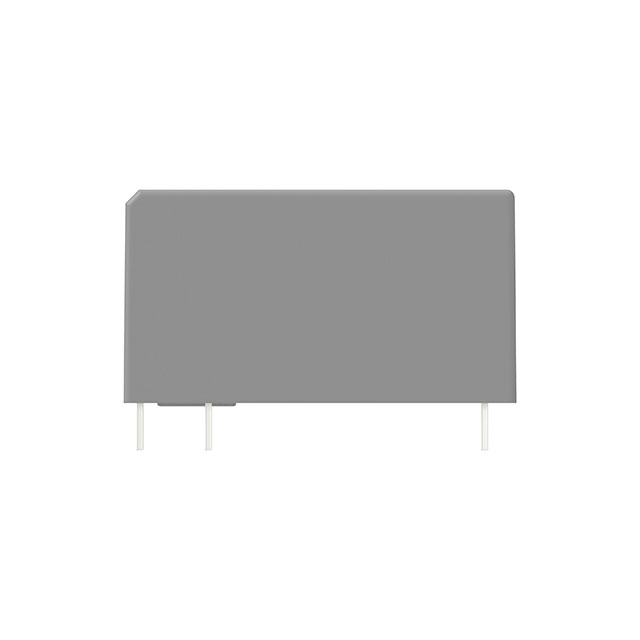

2-1415898-4

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Coil Voltage	Release Time	Contact Rating (Current)	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Resistance	Coil Insulation	Contact Form	Seal Rating	Coil Current	Contact Material	Operate Time	Approval Agency	Termination Style	Relay Type	Coil Type	Load - Max Switching
TE Connectivity Potter & Brumfield Relays 2-1415898-3	8.4 VDC	12 VDC	10 ms	16 A	400 VAC	85 °C	-40 °C	Through Hole	360 Ohms	Class F	SPST-NO (1 Form A)	Sealed - Flux Protection	33.3 mA	Silver Tin Oxide (AgSnO)	10 ms	CQC CSA cURus VDE	PC Pin	General Purpose	Latching Single Coil	6400 VA
TE Connectivity Potter & Brumfield Relays 2-1415898-4	16.8 VDC	24 VDC	10 ms	16 A	400 VAC	85 °C	-40 °C	Through Hole	1440 Ohms	Class F	SPST-NO (1 Form A)	Sealed - Flux Protection	16.7 mA	Silver Tin Oxide (AgSnO)	10 ms	CQC CSA cURus VDE	PC Pin	General Purpose	Latching Single Coil	6400 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 6.02

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
