KSW30W-0100

Obsolete

OK INDUSTRIES

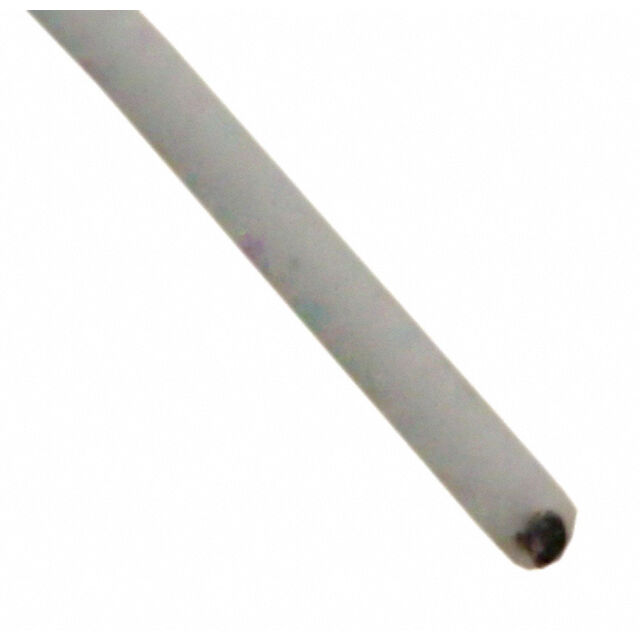

WIRE WW 30AWG PVDF WHITE 100'

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE WW 30AWG PVDF WHITE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	KSW30W-0100

Conductor Diameter [diameter]	0.25 mm
Conductor Diameter [diameter]	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in
Jacket (Insulation) Thickness	0.09 mm
Length	30.5 m
Length [x]	100 ft
Ratings	UL Style 1423
Wire Gauge	30 AWG

Part	Jacket (Insulation) Material	Ratings	Wire Gauge	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Plating	Length [x]
OK INDUSTRIES KSW30W-1000	Polyvinylidene Fluoride (PVDF)	UL Style 1423	30 AWG	0.25 mm	0.01 in	1000 ft	304.8 m	0.019 in	0.5 mm	Copper Bare	0.004 in	0.09 mm	Silver
OK INDUSTRIES KSW30W-0100	Polyvinylidene Fluoride (PVDF)	UL Style 1423	30 AWG	0.25 mm	0.01 in		30.5 m	0.019 in	0.5 mm	Copper Bare	0.004 in	0.09 mm	Silver	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 30 AWG White Polyvinylidene Fluoride (PVDF) 100' (30.5m)
