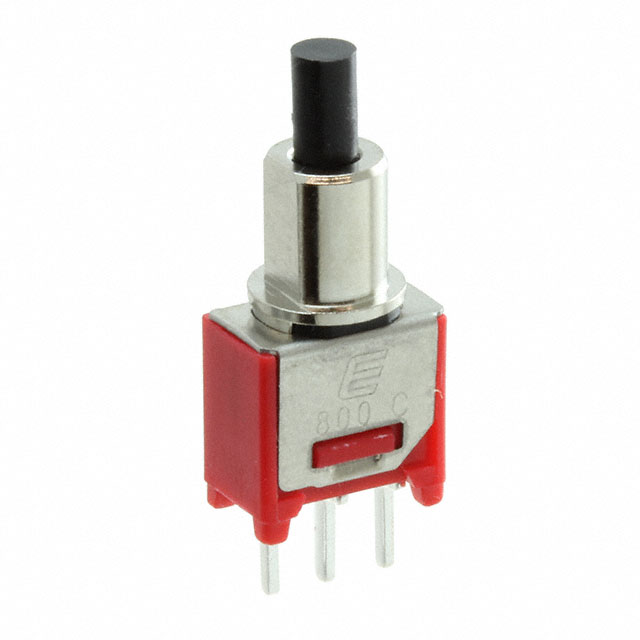

800CSP1B6M2QE
ActiveE-Switch
SWITCH PB SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
800CSP1B6M2QE
ActiveE-Switch
SWITCH PB SPDT 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800CSP1B6M2QE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 6000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 6000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.89 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.24 | |||
| 270 | $ 2.17 | |||
Description
General part information
800CSP1 Series
Pushbutton Switch SPDT Standard Through Hole
